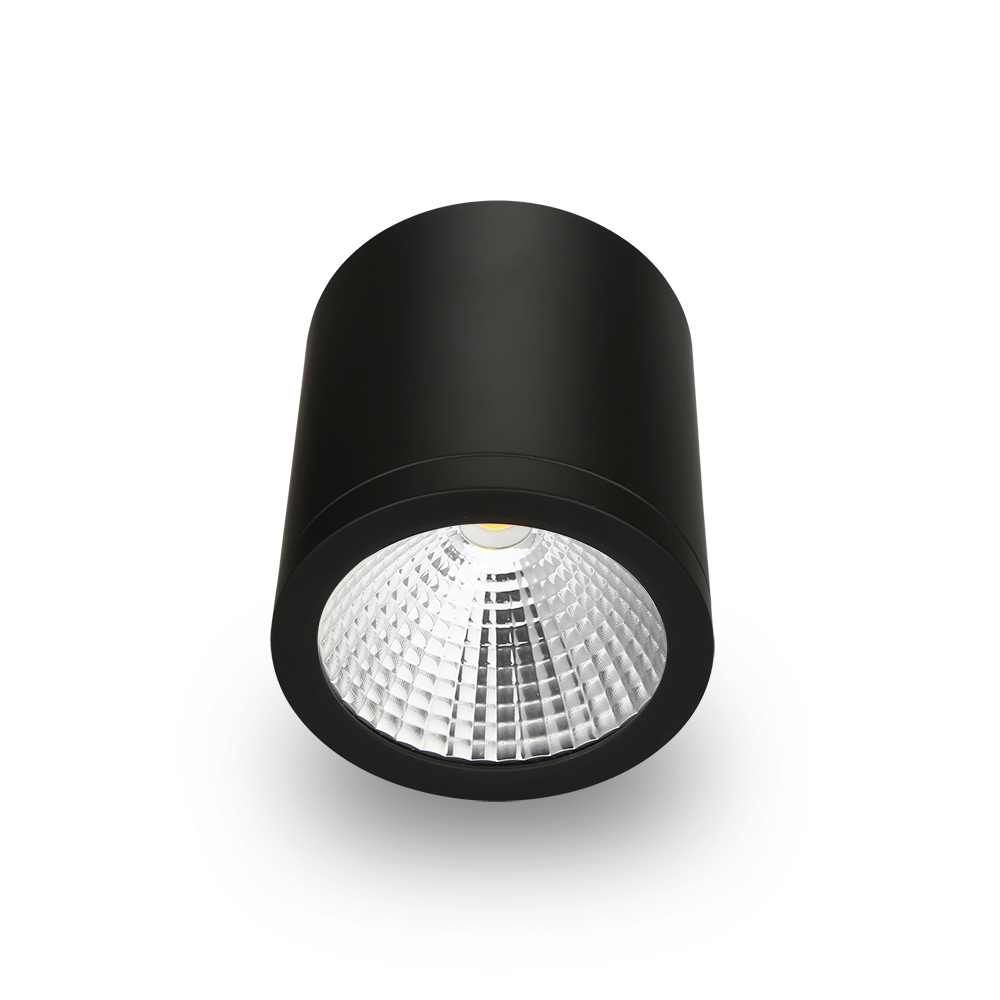

10W LED IP54 Dimmable Surface Mount Downlight | Black Finish | 4000K Cool White | 60° Beam Angle | by atom
The 10W LED IP54 Dimmable Surface Mount Downlight is perfect for both residential and commercial lighting needs. With a sleek black finish and a cool white 4000K color temperature, it delivers 790 lumens of bright illumination. Designed for surface mounting, this downlight features a 60° beam angle and is built to withstand dust and water splashes, making it ideal for various indoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10W LED surface downlight, IP54 dimmable LED downlight, cool white LED ceiling light, atom LED surface mount light
Technical Specifications
- LED Type: COB
- Colour Temperature: 4000K Cool White
- Luminaire Lumens: 790 lm
- Beam Angle: 60°
- Colour Rendering Index (CRI): >80
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Driver Type: Integrated constant current, dimmable (phase cut)
- Driver Current: 215 mA
- IP Rating: IP54 front face only
- Operating Temperature: -20 to 40 °C
- Switch Type: Inline
- Macadam Steps: 5-step MacAdam ellipse
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- 10W system max wattage with 8W LED wattage
- IP54 rated front face for protection against dust and water splashes
- Dimmable with phase cut dimmer
- Fixed adjustability
- Powdercoated black aluminium body with glass diffuser
- 60° beam angle with >80 CRI for quality light rendering
- 5-step MacAdam ellipse for consistent colour quality
- Integrated constant current driver included
- Operating temperature range from -20 to 40 °C
- Inline switch type
- LED lifetime of 40,000 hours
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Residential lighting
- Commercial lighting
- Indoor surface mount lighting
- Accent and general illumination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires safety standards (AS/NZS 60598.1 and AS/NZS 60598.2.1)
- AS/NZS 61347 – Lamp control gear (AS/NZS 61347.1 and AS/NZS 61347.2.13)
Environmental Benefits
- High system efficiency of 79 lm/W reduces energy consumption
- Long LED lifetime of 40,000 hours minimizes waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The atom 10W LED IP54 Dimmable Surface Mount Downlight in black is available for immediate purchase, ideal for residential and commercial surface mount lighting applications.
