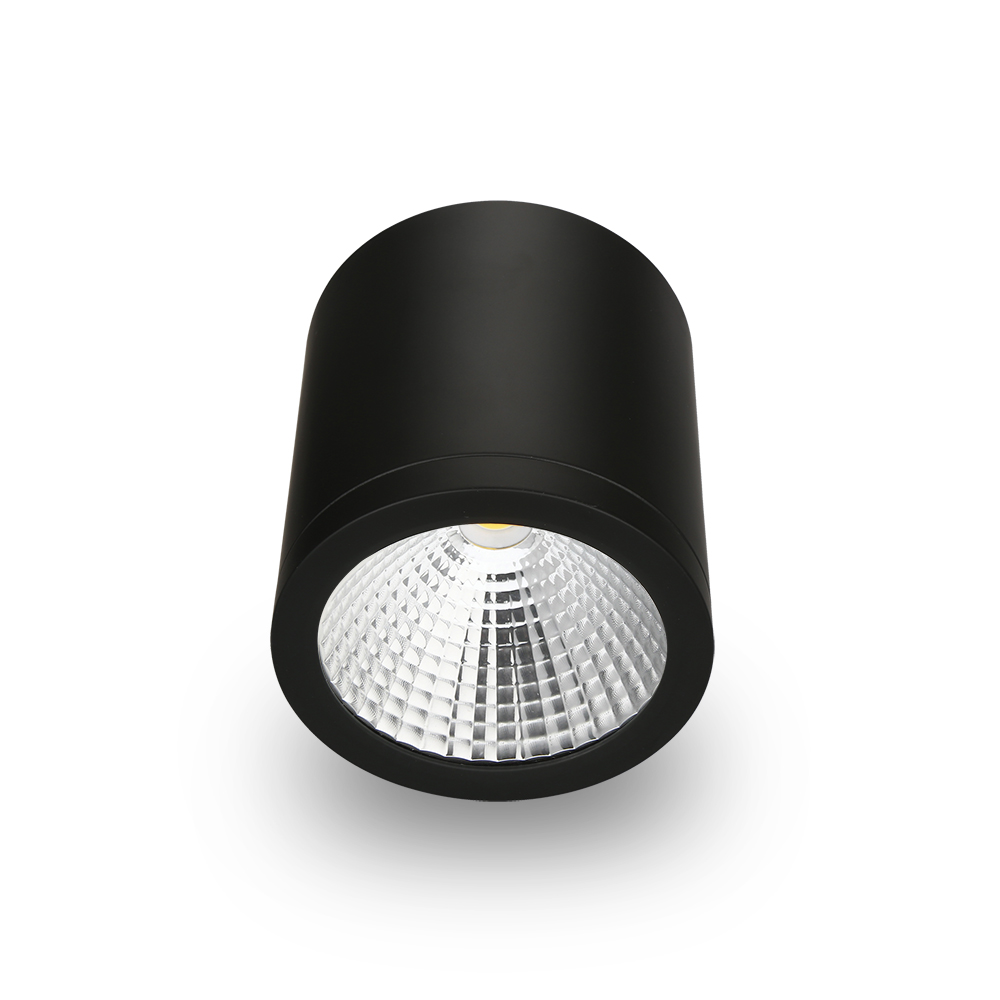

10W LED IP54 Dimmable Surface Mount Downlight | Cool White 4000K | 60° Beam Angle | by atom
The 10W LED IP54 Dimmable Surface Mount Downlight offers a cool white 4000K light with a 60° beam angle, making it perfect for both residential and commercial applications. Designed for durability with an IP54 rating, this downlight ensures protection against dust and water splashes, while its dimmable feature allows for customizable lighting to suit any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10w LED surface downlight, IP54 dimmable LED downlight, 4000K cool white LED light, surface mount LED ceiling light
Technical Specifications
- LED Type: COB
- LED Wattage: 8 W
- System Max Wattage: 10 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Beam Angle: 60°
- Colour Temperature: 4000 K (Cool White)
- CRI: >80
- Macadam Steps: 5-step MacAdam Ellipse
- IP Rating: IP54 front face only
- Driver Type: Dimmable (Phase cut), integrated constant current driver
- Driver Current: 215 mA
- Switch Type: Inline
- Operating Temperature Range: -20 to 40 °C
- Body Material: Aluminium
- Diffuser Material: Glass
- Installation Type: Surface mount
- Luminaire Lumens: 790 lm
- LED Lifetime: 40,000 hours (TM-21 report)
- Dimensions (H x L x W): 50mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Dimmable LED with phase cut driver
- IP54 rated front face for protection against dust and water splashes
- High system efficiency of 79 lm/W
- 60° beam angle for focused lighting
- Colour rendering index (CRI) greater than 80
- Long LED lifetime of 40,000 hours
- Fixed adjustability
- Powdercoated aluminium body with glass diffuser
- Operating temperature range from -20 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential lighting
- Commercial lighting
- Indoor surface mount lighting
- General illumination in offices, retail, and hospitality
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires safety standards
- AS/NZS 61347 – Lamp control gear safety standards
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime reduces waste and replacement frequency
- Dimmable feature allows for energy savings by adjusting light output
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty available with 2 years onsite and 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The atom 10w LED IP54 Dimmable Surface Mount Downlight in Cool White is available for immediate purchase, ideal for residential and commercial surface mount lighting applications.
