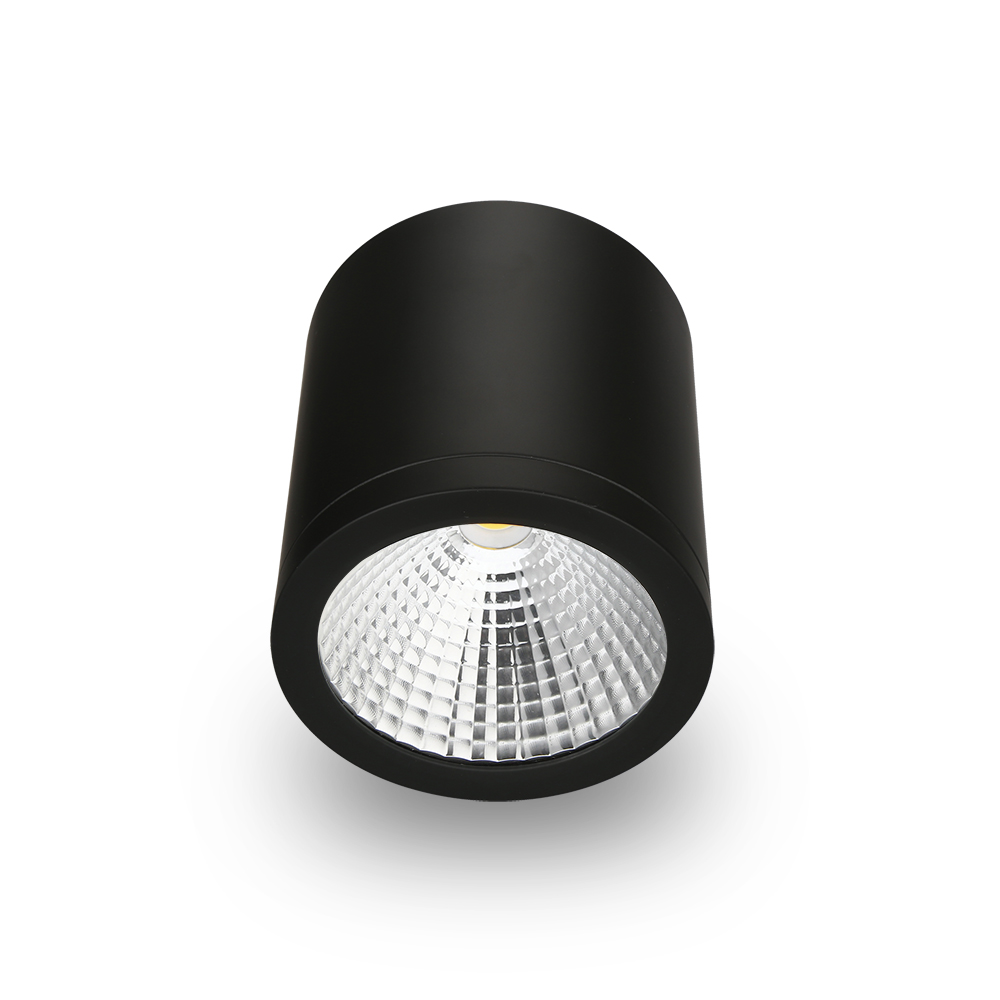

10W LED IP54 Dimmable Surface Mount Downlight | Warm White 3000K | 60° Beam Angle | by atom
The 10W LED IP54 Dimmable Surface Mount Downlight is perfect for both residential and commercial indoor lighting. With a warm white 3000K color temperature and a 60° beam angle, it provides excellent illumination while being energy-efficient. Designed with a durable powdercoated aluminium body and glass diffuser, this downlight ensures long-lasting performance and a stylish finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 10W LED surface downlight, IP54 dimmable LED downlight, warm white LED ceiling light, COB LED surface mount light
Technical Specifications
- System Max Wattage: 10 W
- LED Wattage: 8 W
- Luminaire Lumens: 760 lm (Warm White), 790 lm (Cool White)
- Colour Temperature: 3000 K (Warm White), 4000 K (Cool White)
- Beam Angle: 60°
- Colour Rendering Index (CRI): >80
- LED Type: COB
- Macadam Steps: 5-step MacAdam Ellipse
- Input Voltage: 230Vac (216-253Vac range in Australia)
- Input Frequency: 50 Hz
- Driver Type: Dimmable (Phase cut), integrated constant current driver
- IP Rating: IP54 front face only
- Working Temperature Range: -20 to 40 °C
- Switch Type: Inline
- Wiring: Re-wireable terminal block (3 pin)
- Dimensions (H x L x W): 50mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Dimmable LED with phase cut driver
- IP54 rated front face for moisture resistance
- Powdercoated aluminium body with glass diffuser
- Fixed installation surface mount
- High colour rendering index (CRI >80)
- 5-step MacAdam ellipse colour consistency
- Long LED lifetime of 40,000 hours
- Beam angle of 60 degrees
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical standards and safety.
Applications
- Residential lighting
- Commercial lighting
- Indoor surface mount lighting
- General ambient lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime reduces waste and replacement frequency
- Dimmable feature allows for energy savings and extended lamp life
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty available with 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The atom 10W LED IP54 Dimmable Surface Mount Downlight in Warm White 3000K is available for immediate purchase, ideal for residential and commercial indoor surface lighting applications.
