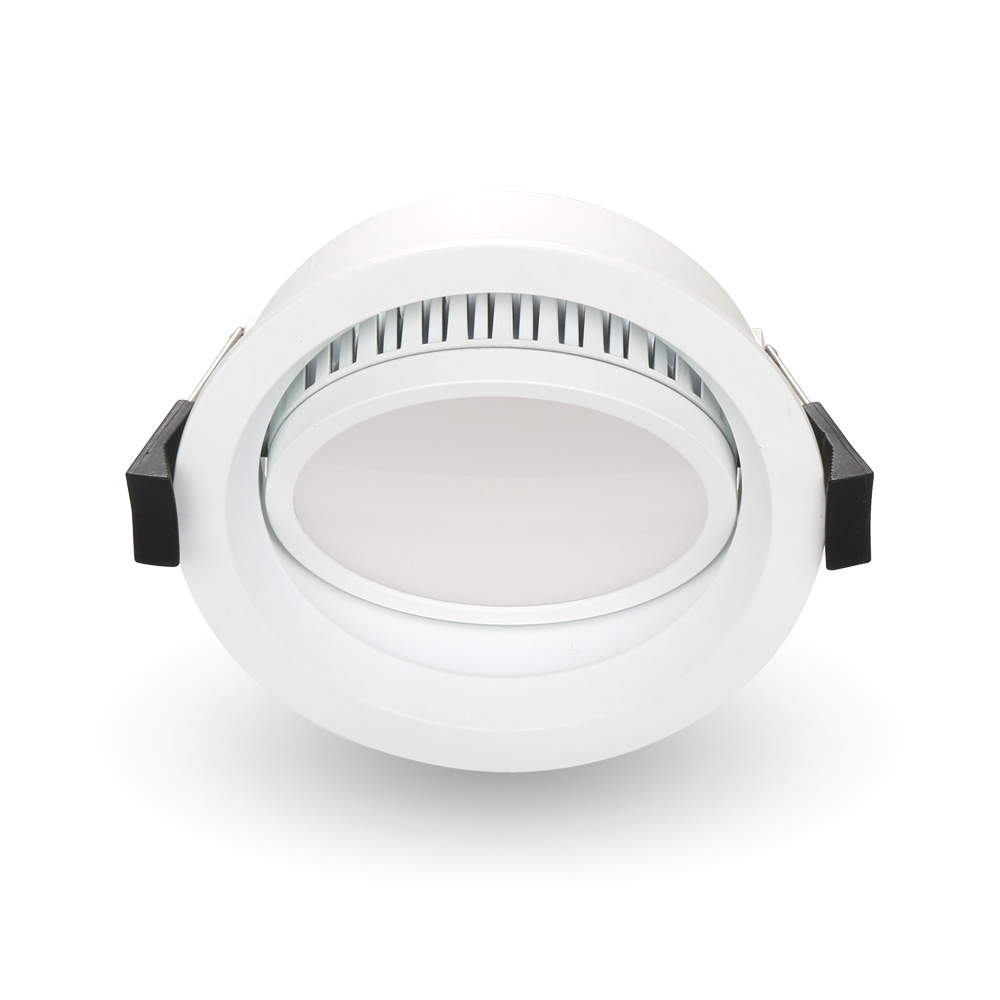

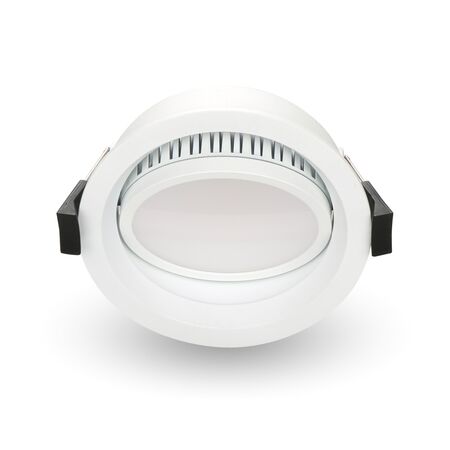

10W Tilt Adjustable LED Downlight | Tri-CCT | Dimmable Driver | IP44 Rated | by atom
The 10W Tilt Adjustable LED Downlight is perfect for both residential and commercial lighting needs. With a Tri-CCT configuration offering Warm White, Cool White, and DayLight options, this downlight provides flexibility in illumination. Its dimmable driver and IP44 rating ensure optimal performance and moisture resistance, making it ideal for recessed ceiling installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Adjustable LED downlight, Dimmable LED downlight, Tri-CCT LED downlight, Tilt LED downlight, Recessed LED downlight
Technical Specifications
- Total System Efficiency: 104 lm/W
- IP Rating: IP44 front face only
- IC Rating: IC rated
- Adjustability: Tilt adjustable
- Body Material: Aluminium with powdercoated finish
- Diffuser Material: PMMA
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 10 W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 5700K)
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 90°
- LED Voltage: 36 V
- LED Current: 250 mA
- LED Lifetime: >54,000 hours (TM-21 report)
- Driver Type: Dimmable (Phase cut)
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: Yes
- Flex & Plug Length: 600 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Driver Mode: Constant Current
- Driver Current: 230 mA
- Dimensions (H x L x W): 120mm x 100mm x 120mm
- Weight: 0.5 kg
Key Features
- 10W power consumption with high system efficiency of 104 lm/W
- Tri-CCT colour temperature options: Warm White (3000K), Cool White (4000K), DayLight (5700K)
- Dimmable driver with phase cut dimming
- Adjustable tilt for directional lighting
- IP44 rated front face for moisture resistance
- IC rated for insulation contact
- Powdercoated white aluminium body with PMMA diffuser
- Long LED lifetime of over 54,000 hours
- High Colour Rendering Index (CRI) >80
- Beam angle of 90°
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting
- Commercial lighting
- Recessed ceiling installations
- Adjustable directional lighting needs
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Specific Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable feature allows energy savings by adjusting light output
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) available to registered users under specific terms.
Available Now
The atom 10W Tilt Adjustable LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
