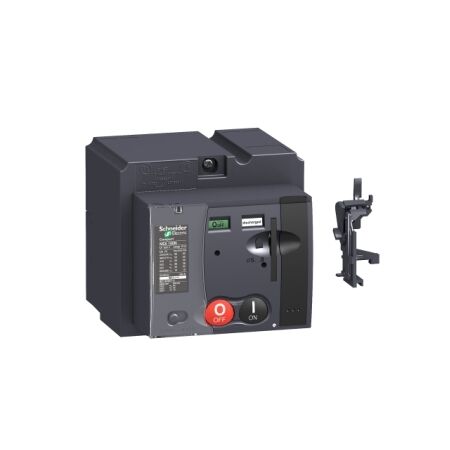

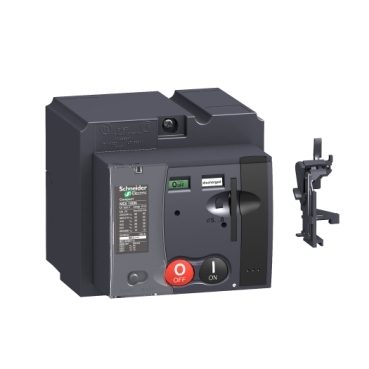

110-130V AC Motor Mechanism Module | Compatible with ComPacT NSX100/160 | Remote Operation | by Clipsal
The 110-130V AC Motor Mechanism Module is designed for seamless integration with ComPacT NSX100/160 circuit breakers, enabling remote operation for enhanced control in electrical distribution systems. Ideal for industrial and commercial applications, this robust module operates at 50/60Hz and supports efficient energy management, reducing manual intervention and operational risks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 110-130V AC Motor Mechanism Module | Compatible with ComPacT NSX100/160 | Remote Operation | by Clipsal
Brand: Clipsal
SKU: SCHLV429433
Alternatively Known As: ComPacT NSX100/160 Motor Mechanism, LV429433, Schneider Electric Motor Mechanism Module, NSX Motor Operator, Circuit Breaker Motor Mechanism
Technical Specifications
- Rated voltage: 110-130V AC
- Frequency: 50/60Hz
- Compatible with: ComPacT NSX100/160 circuit breakers
- Function: Motorized operation for circuit breaker remote control
- Power consumption: Approx. 40 VA
- Operating temperature: -25°C to +70°C
- Mounting: Direct fit to NSX100/160
- Dimensions (H x L x W): 60mm x 120mm x 80mm
- Weight: 0.35 kg
Key Features
- Standard motor mechanism module for ComPacT NSX100/160 circuit breakers
- Operates at 110-130V AC, 50/60Hz
- Enables remote operation of circuit breakers
- Reliable and robust design for industrial and commercial use
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with switchboard and circuit breaker systems to ensure compliance with safety standards.
Applications
- Electrical distribution panels
- Industrial automation systems
- Commercial switchboards
- Motorized circuit breaker operation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy management by enabling remote control and monitoring of circuit breakers.
- Reduces the need for manual intervention, minimizing operational risks and downtime.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLV429433 110-130V AC 50/60Hz MT100/160 Motor Mechanism Module is available for immediate purchase. Ideal for industrial and commercial electrical distribution systems requiring remote circuit breaker operation.
