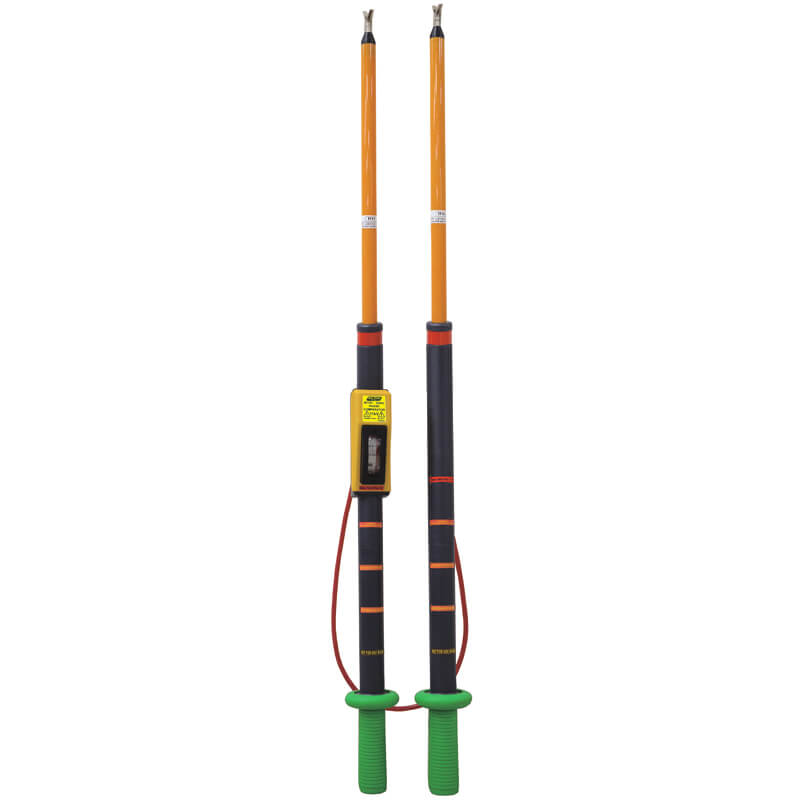

11kV High Voltage Phasing Stick | 12kV Full Scale | Neon Indicator & Scaled Voltmeter | Lightweight Design by Majortech
The 11kV High Voltage Phasing Stick features a 12kV full scale voltage range and neon indicator for easy visibility—ideal for testing grounded or ungrounded electrical systems. Built for trained electrical professionals, it ensures accurate testing results with a lightweight and durable design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 11kV High Voltage Phasing Stick | 12kV Full Scale | Neon Indicator & Scaled Voltmeter | Lightweight Design by Majortech
Brand: Majortech
SKU: MT11KV
Alternatively Known As: High Voltage Phase Comparator Stick, 11kV Voltage Detector, High Voltage Phasing Tester, Electrical Phase Stick
Technical Specifications
- Full scale voltage range: 12kV
- Maximum voltage range: 15kV
- Frequency range: 50 or 60Hz
- Total resistance: 6.78MΩ
- Response time: less than 1 second
- Neon threshold voltage: 1.2kV
- Neon fully lit at: 1.5kV
- Display type: Neon and panel meter
- Handle material: Composite with polyurethane
- Front end material: Fibreglass wound tubing
- Operating temperature range: -25°C to 55°C
- Operating humidity range: 20% to 96% RH
- Safety standard: IEC61481
- Dimensions (H x L x W): n/a mm x 1175mm x n/a mm
- Weight: 2.1 kg
Key Features
- All-in-one meter including Phase Comparator with colour coded scale indication
- Voltage Detector with Neon Indication
- Scaled Voltmeter for accurate voltage measurement
- Analogue colour coded dual scales (Green = in phase, Red = out of phase)
- Bright neon indicator for easy visibility and voltage detection above 1200VAC
- Tough, lightweight construction with glass fibre front ends and composite polyurethane body
- Shock absorbing foam case for protection
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Use by trained electrical professionals is recommended to ensure safety and accurate testing results.
Applications
- Testing of grounded or ungrounded electrical systems
- Checking voltage fuses
- Testing for correct phase connections
- Verifying absence of high voltage on de-energized lines or apparatus
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Lightweight design reduces material usage and transportation emissions
Warranty Information
Warranty details available upon request from Majortech; typically includes coverage against manufacturing defects.
Available Now
The Majortech 11kV High Voltage Phasing Stick is available now for immediate purchase. Ideal for electrical testing and maintenance in industrial and utility applications.
