11kV Termination Kit PILC Large | 24mm-48mm Core Diameter | Includes 4L Compound & Heat Shrink | by Ausproof
The 11kV Termination Kit PILC Large is designed for high voltage cable terminations, accommodating core diameters of 24mm-48mm. This kit includes essential components like 4L compound for insulation, heat shrink for environmental protection, and steel cable ties for secure assembly. Ideal for electrical utilities and industrial power distribution, it ensures reliable performance in open cut installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 11kV Termination Kit PILC Large | 24mm-48mm Core Diameter | Includes 4L Compound & Heat Shrink | by Ausproof
Brand: Ausproof
SKU: RS687
Alternatively Known As: 11kV Cable Termination Kit, PILC Cable Termination, High Voltage Termination Kit, 11kV Heat Shrink Termination
Technical Specifications
- Core Outer Diameter: 24mm-48mm
- Components Included: 4L Compound, 23 Tape x 2, Heat Shrink x 1, Steel Cable Ties x 2
- Voltage Rating: 11kV
- Suitable for PILC cables
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Includes 4L Compound for insulation and sealing
- Comes with 23 Tape x 2 for electrical insulation

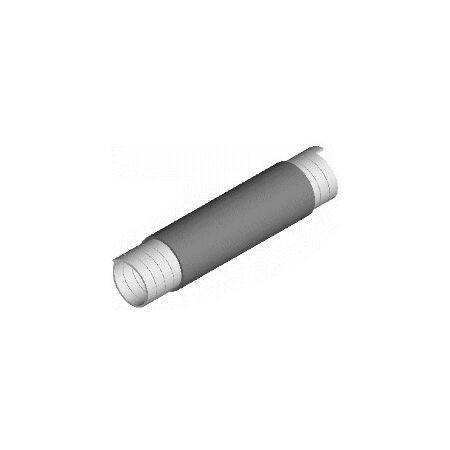

- Heat Shrink x 1 for environmental protection and mechanical strength
- Steel Cable Ties x 2 for secure assembly
Professional Installation Requirements
- Installation must be performed by a qualified electrical technician experienced in high voltage cable terminations to ensure safety and compliance.
Applications
- High voltage cable termination for PILC cables with core outer diameter 24mm-48mm
- Suitable for open cut high voltage electrical installations
- Used in electrical utilities and industrial power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Heat shrink technology ensures long-lasting protection, reducing environmental impact
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Ausproof 11kV Termination Kit PILC Large 24mm-48mm is available now for immediate purchase. Ideal for high voltage electrical installations requiring reliable cable termination solutions.
