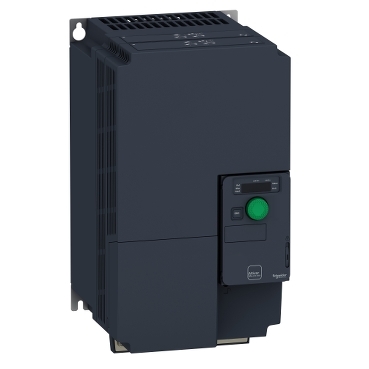

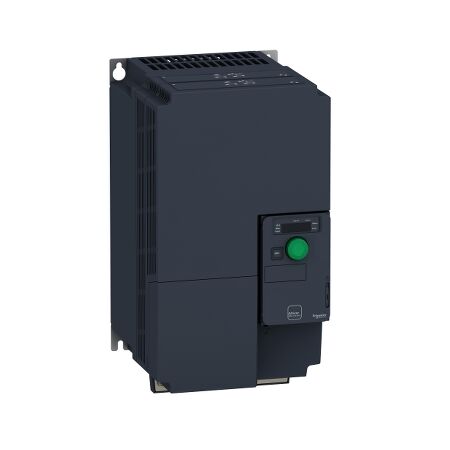

11kW 400V 3 Phase Compact Variable Speed Drive | Integrated EMC Filter | Sensorless Vector Control | by Clipsal
The 11kW 400V 3 Phase Compact Variable Speed Drive is designed for industrial automation, featuring an integrated EMC filter and advanced sensorless vector control. Ideal for applications like pumps, fans, and conveyors, this drive optimizes energy consumption while ensuring robust performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 11kW 400V 3 Phase Compact Variable Speed Drive | Integrated EMC Filter | Sensorless Vector Control | by Clipsal
Brand: Clipsal
SKU: SCHATV320D11N4C
Alternatively Known As: ATV320D11N4C, Schneider ATV320, 11kW VSD, 11kW Variable Speed Drive, 400V 3 Phase Drive, Compact VSD, Schneider Electric ATV320
Technical Specifications
- Power rating: 11kW (15HP)
- Input voltage: 3-phase 380-500V ±10%
- Output voltage: 3-phase 0-500V
- Frequency: 50/60Hz
- Integrated EMC filter: Category C3
- Control type: Sensorless vector control, V/F, Synchronous motor control
- Integrated safety: STO (Safe Torque Off)
- Communication: Modbus, CANopen (integrated), optional Ethernet/IP, Profibus, Profinet
- Operating temperature: -10°C to +50°C (without derating)
- Degree of protection: IP20
- Dimensions (H x L x W): 295mm x 232mm x 130mm
- Weight: 6.5 kg
Key Features
- Compact design for easy integration in control panels
- 11kW (15HP) power rating
- Supports 3-phase 380-500V input
- Integrated EMC filter
- Advanced motor control for asynchronous and synchronous motors
- Integrated safety functions (STO)
- Robust performance in harsh environments
- Flexible connectivity with Modbus and CANopen
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified professional in accordance with local electrical regulations and standards.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- Machine control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Optimizes energy consumption by adjusting motor speed to demand
- Reduces mechanical wear and maintenance needs
- Supports efficient operation of industrial processes
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV320 11kW 400V 3 Phase Compact Variable Speed Drive (SCHATV320D11N4C) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and machine control applications.
