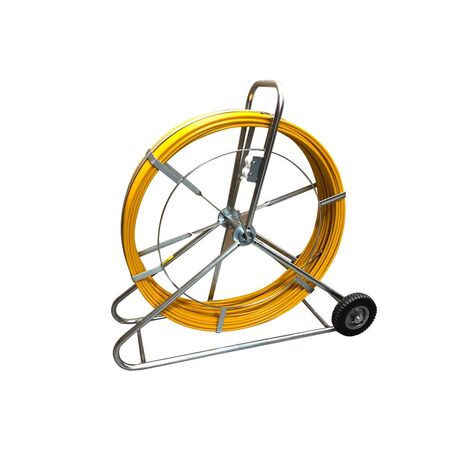

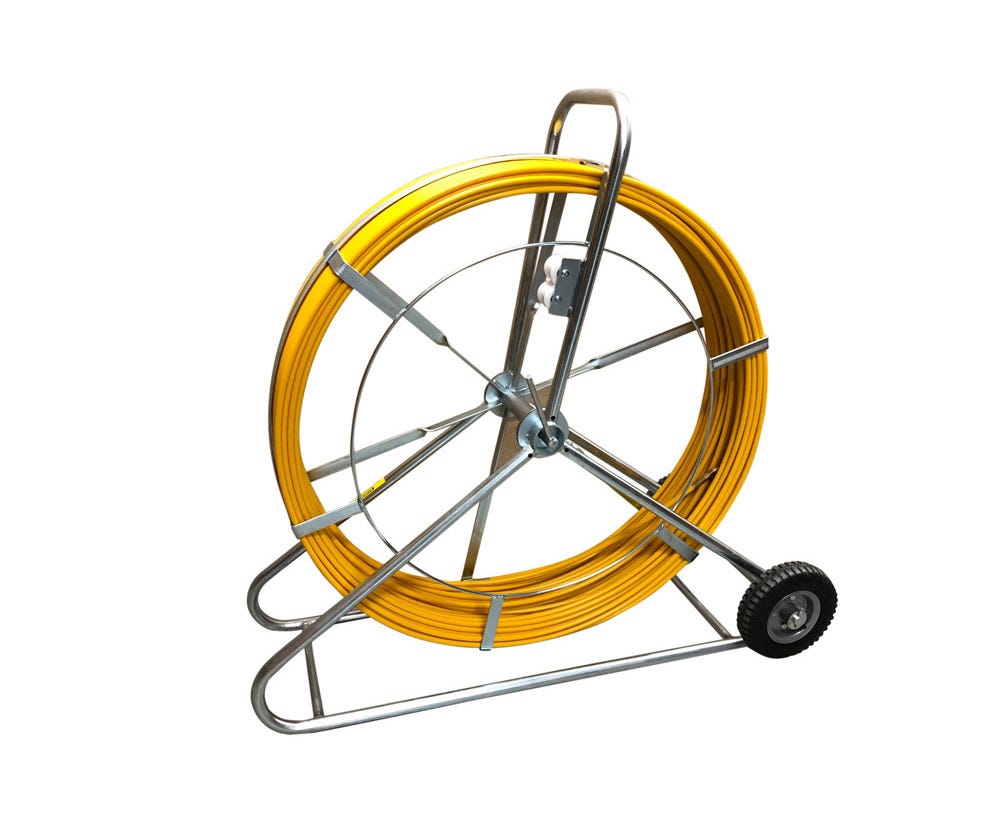

11mm X 125M Tracerod and Frame | Copper Trace Wire | Zinc Plated Steel Frame | Brass Male Ends | @KIT of 1 | by Cabac
The 11mm X 125M Tracerod and Frame is designed for precise underground cable locating, featuring a copper trace wire for accurate signal transmission. Built for utility and construction professionals, this durable rod is fitted with a sturdy zinc plated steel frame and includes brass male ends for easy handling. Ideal for electrical and telecommunications applications, it ensures minimal environmental disruption during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 11mm X 125M Tracerod and Frame | Copper Trace Wire | Zinc Plated Steel Frame | Brass Male Ends | @KIT of 1 | by Cabac
Brand: Cabac
SKU: MSS-11TR-125
Alternatively Known As: Fibreglass Cable Locator Rod, Trace Wire Rod, Underground Cable Tracer, Cable Locating Rod
Technical Specifications
- Rod Diameter: 11mm
- Rod Length: 125 meters
- Trace Wire: Copper wire running through the core, 2 x 0.75mm for 11mm rods
- Frame Material: Zinc plated steel with brake
- Ends: Brass male ends and hauling eye included
- Dimensions (H x L x W): 500mm x 350mm x 400mm
- Weight: 3.5 kg
Key Features
- Copper trace wire running through the core for accurate locating
- Supplied with brass male ends and hauling eye for ease of use
- Fitted to a sturdy zinc plated steel frame with brake for durability and control
- 11mm rods contain 2 x 0.75mm trace wires for enhanced signal transmission
Professional Installation Requirements
- Recommended to be used by trained professionals familiar with underground cable locating equipment for safety and accuracy.
Applications
- Locating underground cables and conduits
- Utility and construction site cable tracing
- Electrical and telecommunications cable installation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Enables precise locating to minimize unnecessary excavation and environmental disruption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac 11mm x 125M Traceable Fibreglass Rod and Frame is available now for immediate purchase. Ideal for utility, electrical, and telecommunications cable locating applications.
