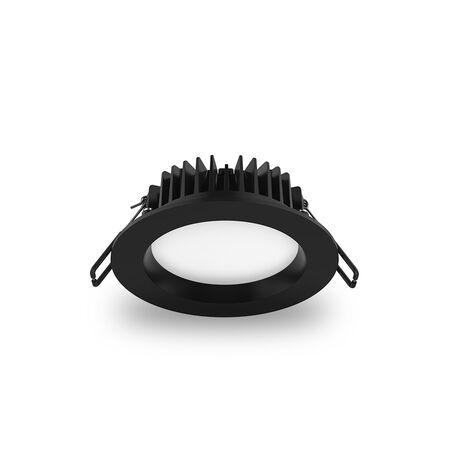

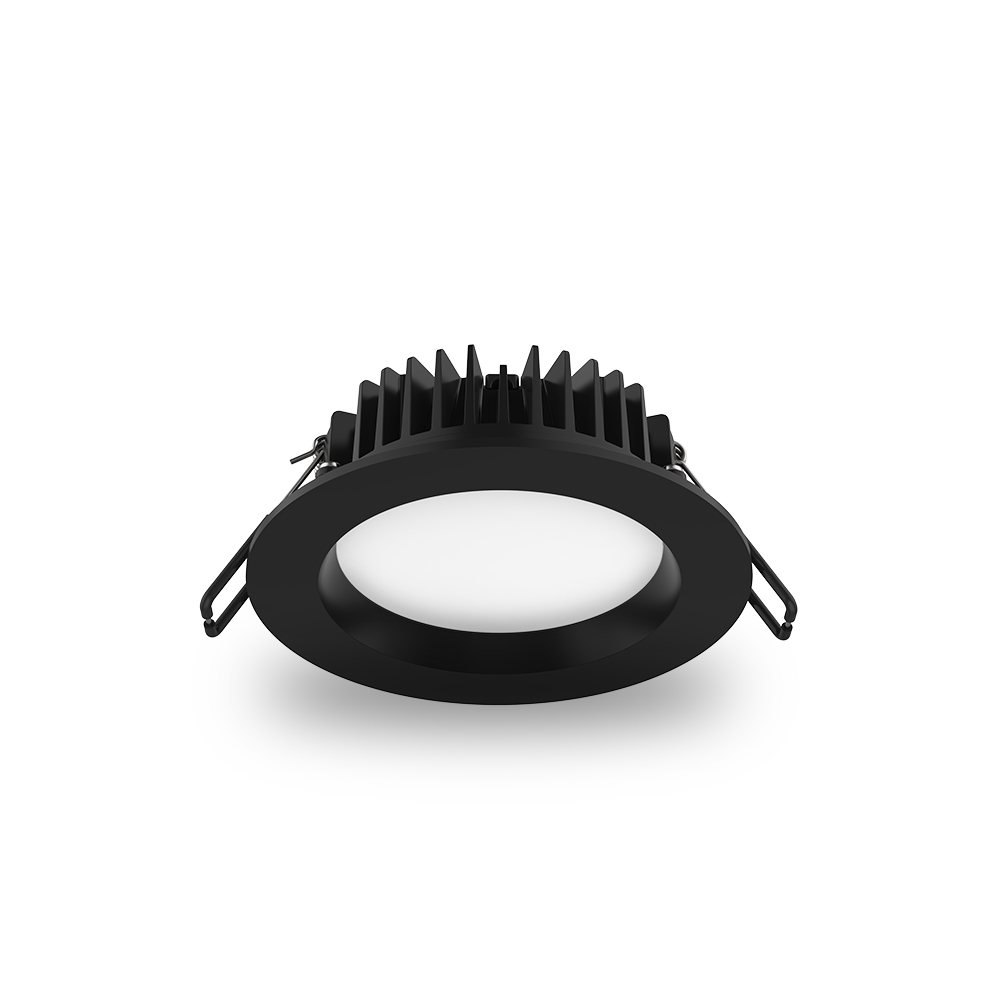

11W LED Downlight | Dimmable Driver | 90° Beam Angle | Black Finish | by atom
The 11W LED Downlight with Dimmable Driver is perfect for both residential and commercial lighting needs. Featuring a 90° beam angle and a sleek black finish, this downlight offers a total system efficiency of 114 lm/W and is IP44 rated for moisture protection. Ideal for recessed ceiling installations, it provides adjustable color temperature options to suit any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 11 Watt LED Downlight, Dimmable LED Downlight, TRI-CCT LED Downlight, Recessed LED Downlight, Black LED Downlight
Technical Specifications
- Total System Efficiency: 114 lm/W
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Fitting Colour: Black
- Product Finish: Powder coated
- Body Material: Aluminium
- Diffuser Material: PMMA
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 11 W
- System Max Wattage: 12 W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- Number of Lamps: 1
- LED Type: Diffused
- CCT Configuration: TRI-CCT (3000K, 4000K, 6000K)
- Macadam Steps (SDCM): 4-step MacAdam Ellipse
- Beam Angle: 90°
- Lamp/LED Current: 350 mA
- LED Lifetime: >60000 hrs (TM-21 Reported)
- LED Lifetime Ratings: L90B10 at 35000 hrs (25°C and 40°C)
- TM-21 Test Hours: 10000 hrs
- Driver Type: Dimmable (Phase cut)
- Driver Included: Yes
- Integrated Driver: No
- Driver Code: 10974
- Dimmable: Yes
- Flex & Plug Length: 120 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Driver Warranty: 3 years
- Driver Current: 350 mA
- Dimensions (H x L x W): 70mm x 120mm x 120mm
- Weight: 0.3 kg
Key Features
- Total system efficiency of 114 lm/W
- IP44 rated front face for moisture protection
- IC-4 rated for safe insulation coverage in Australian environments
- Fixed adjustability with TRI-CCT (3000K, 4000K, 6000K) color temperature options
- Powder coated aluminium body with PMMA diffuser
- Dimmable phase cut driver included
- High color rendering index (CRI > 80)
- Long LED lifetime > 60000 hours
- Beam angle of 90 degrees
- Power factor of 0.9
- Input voltage range 216-253Vac (230Vac nominal)
- Inline switch type with re-wireable 2-pin flex and plug
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting: living rooms, kitchens, bedrooms
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable color temperature lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Particular Requirements for Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable driver allows energy savings through adjustable lighting levels
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) available to registered users under specific terms.
Available Now
The atom 11W LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
