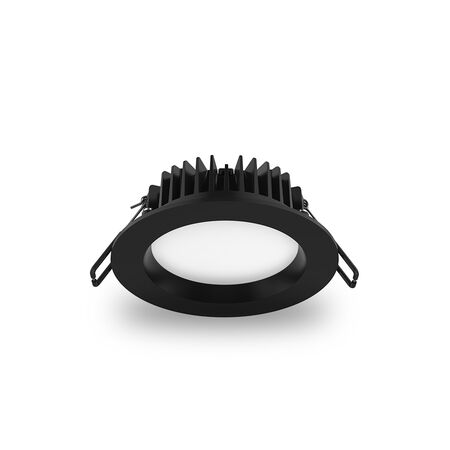

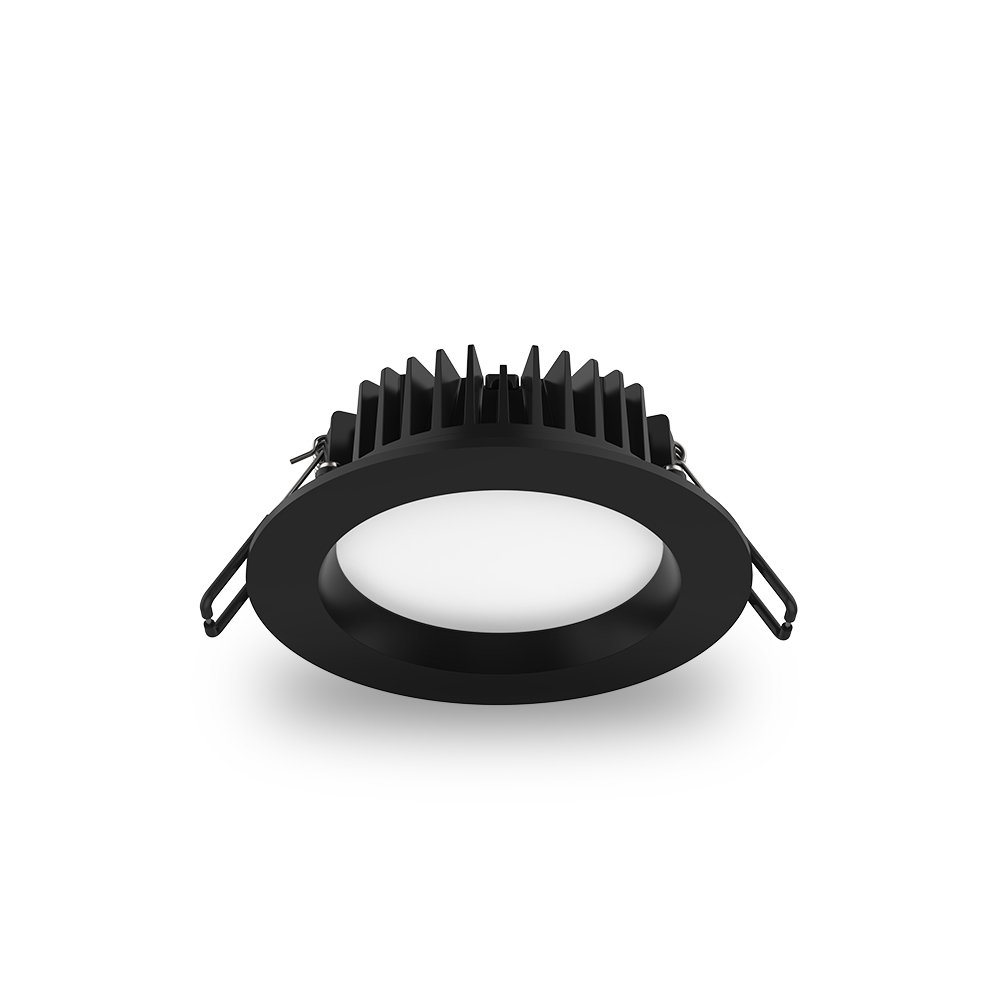

11W LED Downlight with Dimmable Driver | 90° Beam Angle | IP44 Rated | TRI-CCT | by atom
The 11W LED Downlight with Dimmable Driver offers a versatile 90° beam angle and TRI-CCT configuration, making it perfect for both residential and commercial lighting. With an IP44 rating for moisture protection and a long LED lifetime of over 60,000 hours, this downlight ensures reliable performance and energy efficiency in any indoor setting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 11W LED Recessed Downlight, Dimmable LED Downlight, TRI-CCT LED Downlight, 90 Degree Beam LED Light
Technical Specifications
- Total system efficiency: 114 lm/W
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Fitting colour options: Black, Natural, Satin Chrome, Silver, White
- Body material: Aluminium with powder coated finish
- Diffuser material: PMMA
- Installation type: Recessed
- Working temperature range: 0 to 40 °C
- Input frequency: 50 Hz
- Switch type: Inline
- Power factor: 0.9
- Maximum wattage: 11 W (system max 12 W)
- Input voltage: 230Vac (216Vac - 253Vac range)
- Colour rendering index (CRI): >80
- Number of lamps: 1
- LED type: Diffused
- CCT configuration: TRI-CCT (3000K, 4000K, 6000K)
- Macadam steps: 4-step MacAdam ellipse
- Beam angle: 90°
- LED current: 350 mA
- LED lifetime: >60000 hours (TM-21 report)
- LED lifetime ratings: L90B10 at 35000 hours at 25°C and 40°C
- Driver type: Dimmable (phase cut), included
- Driver code: 10974
- Flex & plug length: 120 mm
- Wiring type: Re-wireable flex & plug (2 pin)
- Driver warranty: 3 years
- Operational lifetime: 50000 hours
- Dimensions (H x L x W): 60mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Total system efficiency of 114 lm/W
- IP44 rated front face for moisture protection
- IC-4 rated for safe insulation coverage
- Fixed adjustability
- Powder coated aluminium body with PMMA diffuser
- Dimmable phase cut driver included
- TRI-CCT configuration with 3000K, 4000K, and 6000K colour temperatures
- High CRI >80 for accurate colour rendering
- 90° beam angle
- Long LED lifetime >60000 hours
- Power factor of 0.9
- Input voltage range 216Vac - 253Vac
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting
- Commercial lighting
- Recessed ceiling installations
- Indoor ambient and task lighting
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.2
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable driver allows energy savings through adjustable lighting levels
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years) for registered users. Standard warranty: 3 years return-to-base.
Available Now
The atom 11W LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
