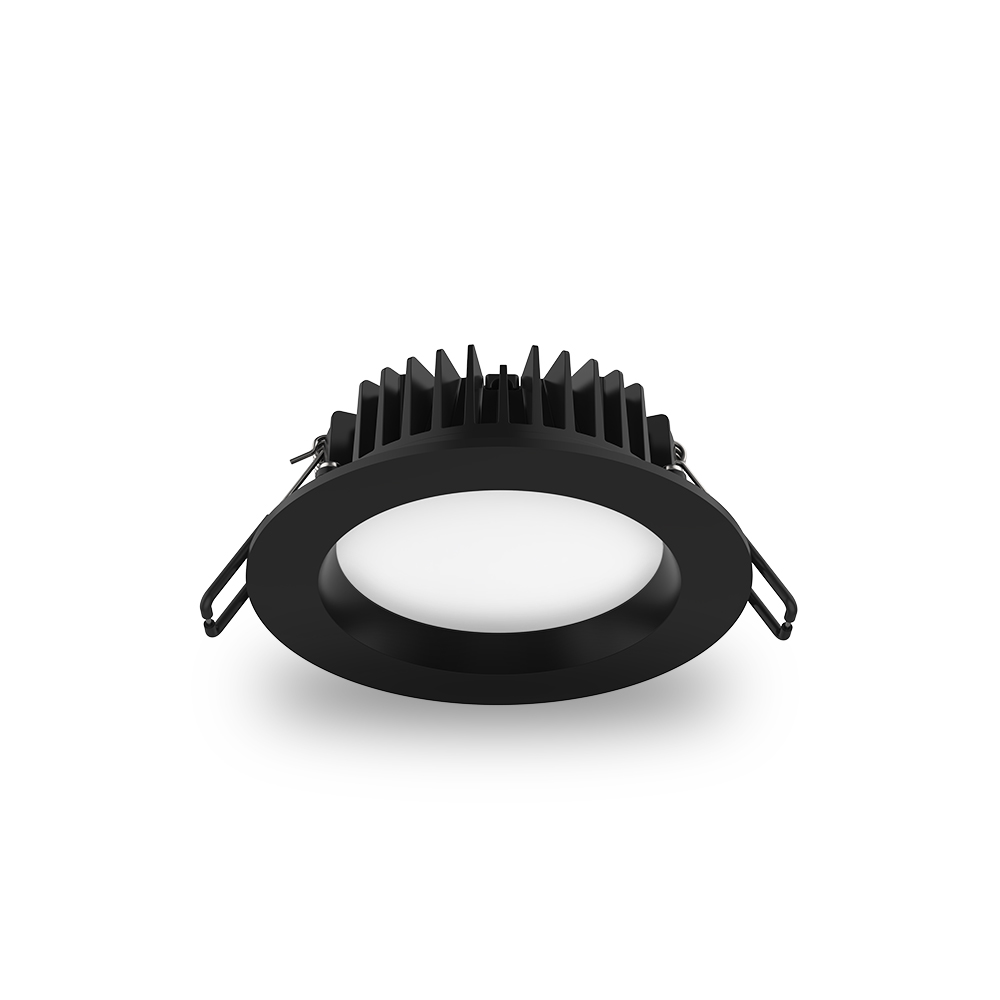

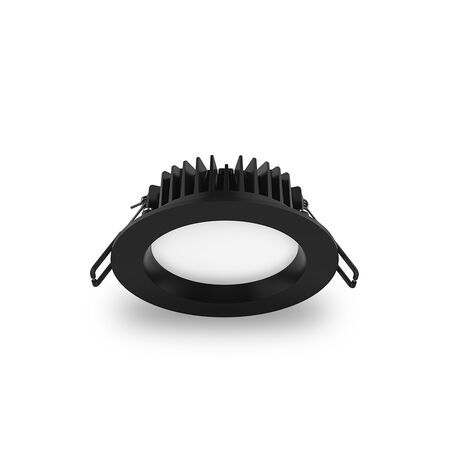

11W LED Downlight with Dimmable Driver | 90 Degree Beam | IP44 Rated | TRI-CCT | by atom

BRAND: Atom
SKU: AT9012/WH/TRI
$40.20 List price: $48.60
+ −
30 Days Return Delivery Options
The 11W LED Downlight with Dimmable Driver offers a versatile lighting solution with a 90-degree beam angle and TRI-CCT options (3000K, 4000K, 6000K). Ideal for both residential and commercial spaces, this downlight features an IP44 rating for moisture resistance and a long LED lifetime of over 60,000 hours, ensuring energy efficiency and durability in any setting.

Alternatively Known As: 11 Watt LED Downlight, Dimmable LED Ceiling Light, TRI-CCT LED Downlight, 90 Degree Beam LED Recessed Light

Technical Specifications
  • Power: 11 W maximum, system max 12 W
  • Input voltage: 230Vac (216-253Vac range)
  • Input frequency: 50 Hz
  • Power factor: 0.9
  • LED type: Diffused
  • Colour temperature options: 3000K (Warm White), 4000K (Cool White), 6000K (Daylight)
  • Lumen output: 1150 lm (3000K), 1250 lm (4000K), 1200 lm (6000K)
  • Beam angle: 90 degrees
  • LED current: 350 mA
  • LED lifetime: >60000 hours (TM-21 report), L90B10 at 35000 hours
  • IP rating: IP44 front face only
  • IC rating: IC-4
  • Driver type: Dimmable phase cut, included, non-integrated
  • Driver warranty: 3 years
  • Wiring: Re-wireable flex & plug (2 pin), 120 mm lead
  • Operating temperature range: 0 to 40 °C
  • Switch type: Inline
  • Dimensions (H x L x W): 60mm x 120mm x 120mm
  • Weight: 0.5 kg
Key Features
  • Total system efficiency of 114 lm/W
  • IP44 rated front face for moisture resistance
  • IC-4 rated for safe insulation coverage
  • Fixed adjustability with TRI-CCT (3000K, 4000K, 6000K)
  • Dimmable phase cut driver included
  • High CRI >80 for accurate color rendering
  • Long LED lifetime >60000 hours
  • Beam angle of 90 degrees
  • Power factor of 0.9
  • Powder coated aluminium body with PMMA diffuser
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Residential lighting: living rooms, kitchens, bedrooms
  • Commercial lighting: offices, retail spaces, hospitality
  • Recessed ceiling installations requiring adjustable white light temperatures
Standards & Compliance
  • AS/NZS 60598.1
  • AS/NZS 60598.2.2
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
Environmental Benefits
  • High system efficiency reduces energy consumption
  • Long LED lifetime minimizes waste and replacement frequency
  • Dimmable driver allows energy savings through adjustable lighting levels
  • Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information

Standard 3 years return-to-base warranty. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.

Available Now

The atom 11W LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
