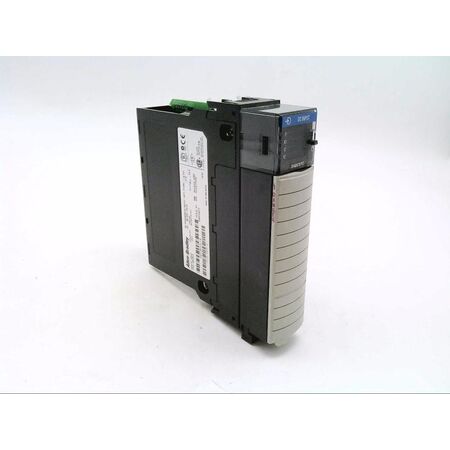

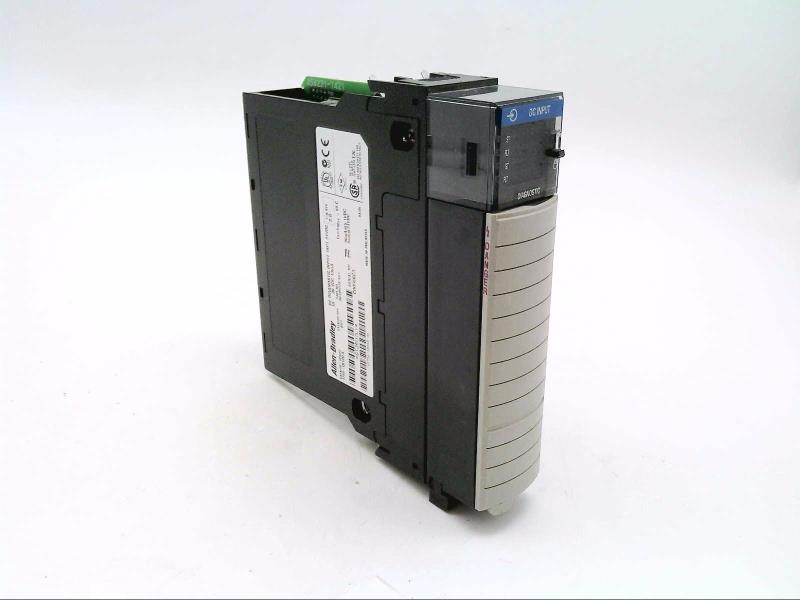

Product Name/Title: Allen-Bradley 1756IB16DK Input Module 12-24 V DC Sink
Brand: Allen-Bradley
SKU: 1756IB16DK
Alternatively Known As: Allen-Bradley Input Module 1756IB16DK, 12-24V DC Sink Input Module, ControlLogix Input Module
Technical Specifications
- Input Voltage Range: 10-30 V DC
- Minimum Operating Current: 2 mA at 10 V DC
- Maximum Operating Current: 13 mA at 30 V DC
- Current per Point: 1.5 mA
- Power Consumption: 5.8 W at 60°C
- Conformal Coating: Yes
- Dimensions (H x L x W): 120mm x 130mm x 50mm
- Weight: 0.2 kg
Key Features
- 12-24 V DC sink input module
- Minimum operating current: 2 milliamps at 10 V DC
- Maximum operating current: 13 milliamps at 30 V DC
- 1.5 milliamps per point
- Power consumption: 5.8 watts at 60°C
- Conformal coated for protection in harsh environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician or automation technician to ensure compliance with electrical standards and system integration.
Applications
- Industrial automation control systems
- Input signal processing in manufacturing environments
- Integration with Allen-Bradley ControlLogix systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial control systems
- Conformal coating extends product life, reducing electronic waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1756IB16DK Input Module is available for immediate purchase, ideal for industrial automation and control system applications.
