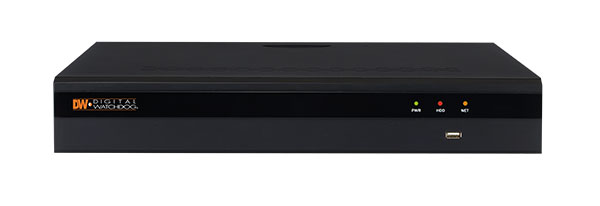

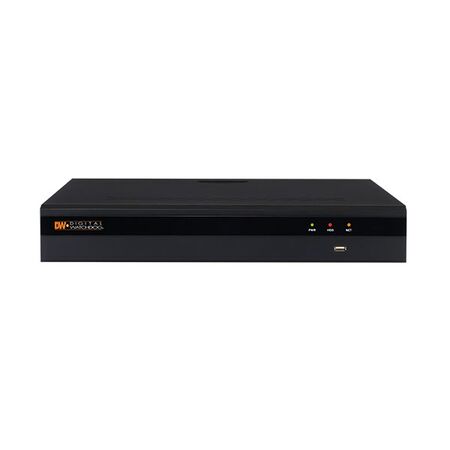

12 Channel NVR 8 PoE Ports 4TB HDD 4K CCIP Encryption Ness

BRAND: Ness
SKU: 123-009
$1,778.90 List price: $2,371.90
+ −
30 Days Return Electricians Unlock Trade Access
Ness 12 channel NVR features 8 PoE ports, a 4TB HDD, 4K recording and CCIP encryption. Ideal for CCTV installs.

Alternatively Known As: DW-VP124T8P, VMAX IP Plus NVR, 8-Port PoE Network Video Recorder, CCTV NVR

Technical Specifications
  • Model: DW-VP124T8P
  • Recording Channels: 12 total channels, including 8 PoE channels and 4 additional IP channels
  • Storage: 4TB HDD included
  • Video Resolution: Up to 4K (3840 × 2160)
  • Video Compression: H.265 and H.264
  • Maximum Throughput: 80Mbps
  • PoE: 8 ports, IEEE 802.3af, up to 30W per port
  • PoE Power Budget: 150W total
  • Network Protocol: ONVIF
  • Recording Rate: Up to 360fps at 4K resolution
  • Video Outputs: True HD and VGA, supporting up to 4K
  • HDD Expansion: Up to 4 SATA HDDs and 32TB total storage
  • Alarm I/O: 4 alarm inputs and 1 relay output
  • Audio: 1-channel audio output
  • Power Requirement: 110–240V AC
  • Operating Temperature: 5–40°C
  • Operating Humidity: 20–90% RH, non-condensing
  • Certifications: CE, FCC, KCC, WEEE and RoHS
  • Dimensions (H x L x W): 71mm x 397.8mm x 440mm
  • Weight: 4.54 kg
Key Features
  • Supports up to 12 IP cameras, with 8 cameras powered directly through the integrated PoE switch
  • Records and manages single-sensor IP cameras up to 4K resolution
  • Includes a pre-installed 4TB hard disk drive
  • CCIP system encryption helps protect the surveillance system from external network attacks
  • ONVIF compatibility supports integration with compatible IP cameras
  • Dual-stream recording with continuous, scheduled, sensor and motion-triggered modes
  • Remote access through DW mobile applications, web viewer and C3 CMS software
  • Automatic device discovery and system health monitoring
  • Supports camera expansion to 12 devices using an external PoE switch
  • Quick setup, configuration and camera discovery functions
Professional Installation Requirements
  • Installation involving mains power, structured cabling or fixed security wiring should be completed by suitably qualified personnel. Configure the NVR and connected cameras in accordance with manufacturer instructions and applicable Australian electrical and communications requirements.
Applications
  • Commercial CCTV surveillance systems
  • Retail stores, offices and warehouses
  • Residential security camera installations
  • Small business premises requiring centralised IP video recording
  • Security systems using ONVIF-compatible PoE cameras
  • Multi-camera monitoring with remote access and event notifications
Standards & Compliance
  • Applicable safety framework: AS/NZS 62368.1 for audio/video, information and communication technology equipment safety
  • Mains electrical installation work should comply with AS/NZS 3000 where applicable
Environmental Benefits
  • RoHS compliance helps restrict specified hazardous substances in the electronic equipment
  • H.265 compression can reduce recording storage and network bandwidth requirements compared with older codecs
  • Expandable storage and multi-camera support can extend the useful life of the surveillance installation
  • Replaceable HDD architecture can reduce whole-unit replacement waste when storage components require renewal
Warranty Information

Ness lists a 3-year limited warranty for Digital Watchdog cameras and recorders, subject to the manufacturer's warranty terms and exclusions.

Available Now

Listed through Ness; confirm current stock, generation and product support status with an authorised Australian distributor.
