12 Input Passive Headend Combiner | 5-1000 MHz | High Reliability | Compact Design by Matchmaster
12 input passive headend combiner with 5-1000 MHz frequency range and high reliability—ideal for broadcasting and distribution. Built for efficient signal management, with a compact design for space-saving installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

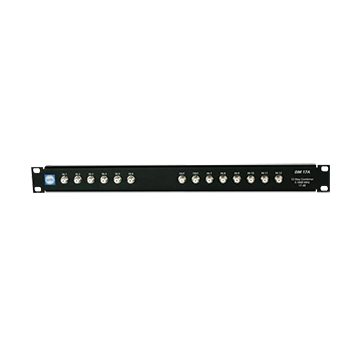

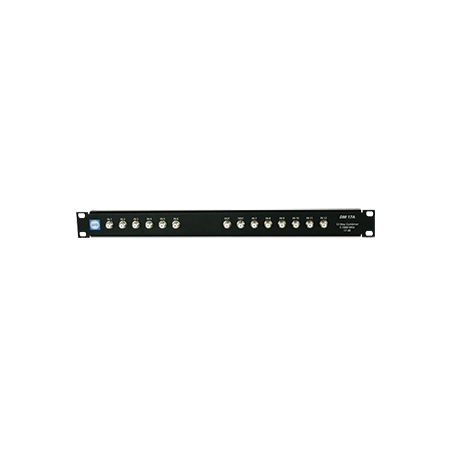

Product Name/Title: 12 Input Passive Headend Combiner
Brand: Matchmaster
SKU: 14MM-DM17A
Alternatively Known As: 12 Way Signal Combiner, 12 Input Signal Combiner, Passive Signal Combiner
Technical Specifications
- Frequency Range: 5-1000 MHz
- Insertion Loss: <= 3 dB
- Isolation: >= 15 dB
- Return Loss: >= 20 dB
- Connector Types: F-Type connectors
- Output: 1 output port.
- Dimensions (H x L x W): 50mm x 200mm x 300mm
- Weight: 2.5 kg
Key Features
- Supports up to 12 inputs for signal combining.
- Passive operation with high reliability.
- Compact design for efficient space management.
Professional Installation Requirements
- Installation by a qualified technician is recommended for optimal performance.
Applications
- Broadcast: Television and radio signal combining
- Distribution: Centralized distribution of signals in communication networks
Standards & Compliance
- Complies with AS/NZS 1160 for telecommunications standards.
Environmental Benefits
- Passive design minimizes energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The 12 Input Passive Headend Combiner is available now for immediate purchase. Ideal for broadcasting and distribution applications.
