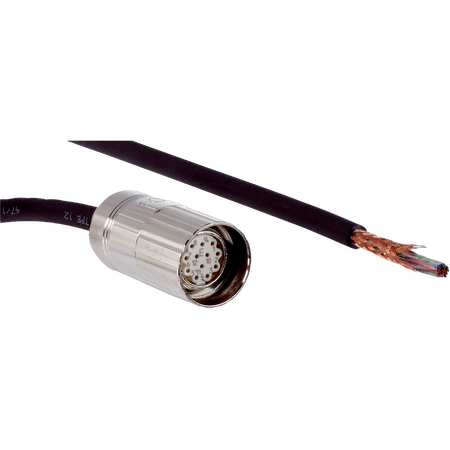

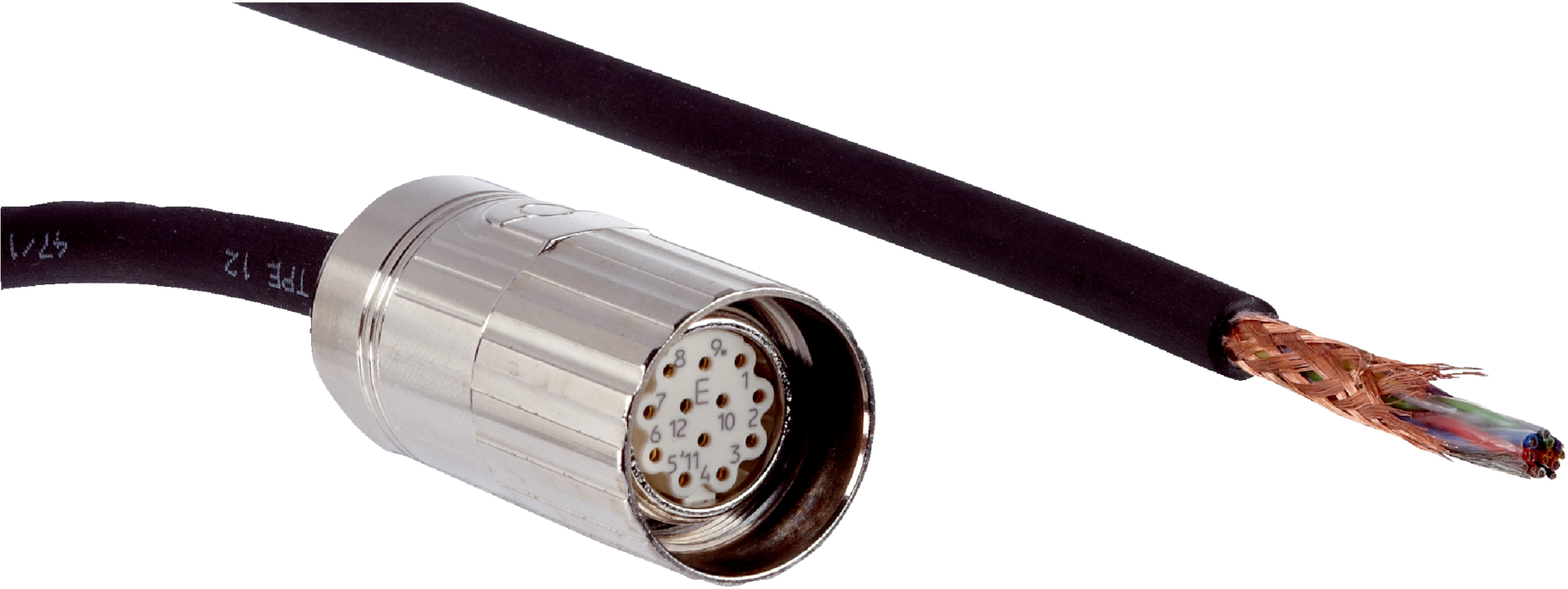

12-Pin Female Connector Cable | M23 Straight Connector | Shielded PUR Jacket | IP66/IP67 Rated | by SICK
The 12-pin female connector cable is designed for industrial automation, featuring a straight M23 connector and flying leads for flexible connections. With a durable, halogen-free PUR jacket and high IP66/IP67 rating, this cable ensures reliable signal transmission in environments exposed to oils and lubricants, making it ideal for control systems and incremental encoders.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12-pin female connector cable, M23 12-pin cable, industrial encoder cable 5m, shielded PUR cable 12-wire
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable wires: 12-wire
- Jacket material: PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Application environment: Zones with oils and lubricants
- Enclosure rating: IP66 / IP67
- Dimensions (H x L x W): 15mm x 5000mm x 15mm
- Weight: 0.3 kg
Key Features
- Female M23 12-pin straight connector on head A
- Flying leads on head B for flexible connection
- Zinc die-cast, nickel-plated locking nut for durability
- PUR halogen-free jacket for chemical resistance
- Shielded cable for signal integrity
- High IP66/IP67 enclosure rating for protection against dust and water
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Environments with exposure to oils and lubricants
- Signal transmission for incremental encoders
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-2312-G05MMA3 12-pin female cable 5M is available for immediate purchase, ideal for industrial automation and control applications requiring robust and reliable cabling.
