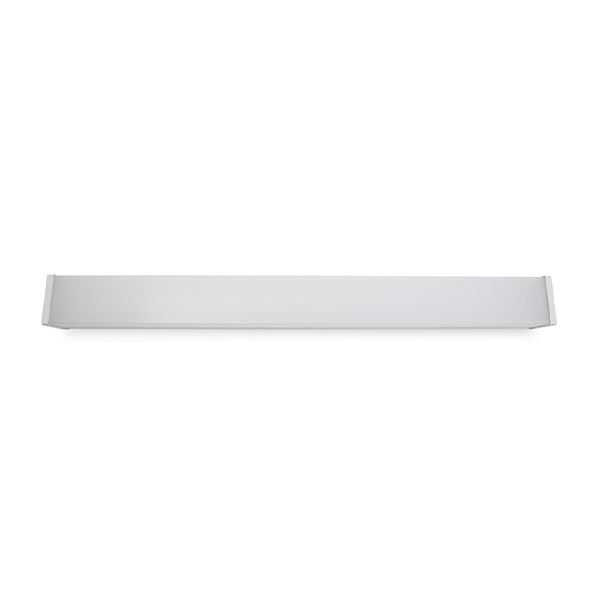

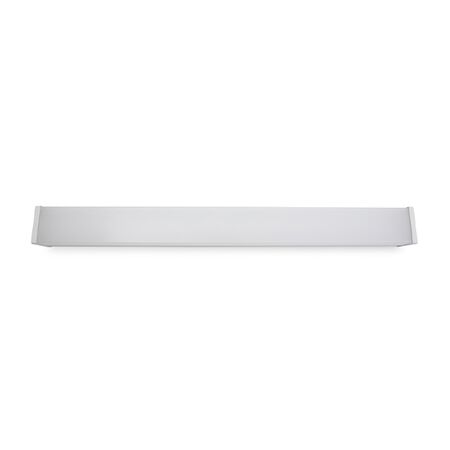

1200mm Diffused LED Batten | Tri-CCT | 136 lm/W Efficiency | IP20 Rated | by Ektor
The 1200mm Diffused LED Batten with Tri-CCT configuration offers versatile lighting options with 4000K, 5000K, and 6500K color temperatures. Designed for commercial and industrial spaces, this batten features a high efficiency of 136 lm/W and a long LED lifetime of over 60,000 hours. Ideal for surface mounting in corridors and hallways, it ensures reliable performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-Color Temperature LED Batten, Diffused LED Batten Light, Surface Mounted LED Batten, Emergency LED Batten Light
Technical Specifications
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 1.5 kg
Key Features
- Tri-CCT configuration allowing selection between 4000K, 5000K, and 6500K color temperatures
- High system efficiency up to 136 lm/W
- Long LED lifetime greater than 60,000 hours (L70B10 rating)
- Fixed output driver with constant current mode
- IP20 rated suitable for indoor surface mounting
- Powder coated steel body with PMMA diffuser
- Non-dimmable with inline switch
- Emergency maintained mode with 90 minutes duration and 400-450 lm emergency output
- Microwave sensor options available with adjustable settings
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Commercial lighting for offices, retail, and industrial spaces
- Surface mounted lighting for corridors, hallways, and general indoor areas
- Emergency lighting with maintained emergency mode options
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Compliant with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base with onsite warranty available to registered users in defined regions. Commercial use warranty includes 5 years return-to-base with first 2 years onsite warranty. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 1200mm Diffused LED Batten - Tri-CCT is available for immediate purchase, ideal for commercial and industrial indoor lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
