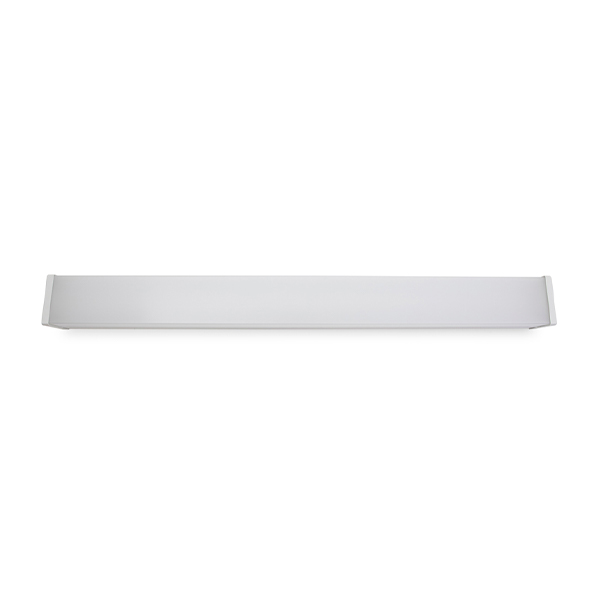

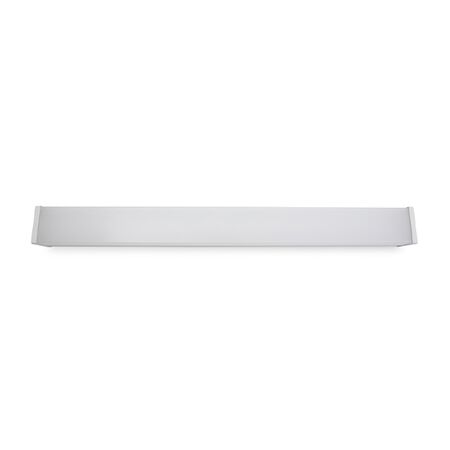

1200mm Diffused LED Batten | Tri-CCT Adjustable | Microwave Sensor | 136 lm/W Efficiency | by Ektor
The 1200mm Diffused LED Batten with Tri-CCT is designed for versatile lighting solutions, featuring adjustable color temperatures and a microwave sensor with a 10m detection range. Ideal for commercial and emergency applications, this batten ensures high efficiency of up to 136 lm/W and a maintained emergency mode lasting 90 minutes, making it a reliable choice for safety lighting in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, Sensor LED Batten, Emergency LED Light with Sensor, Surface Mounted LED Batten
Technical Specifications
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- Tri-CCT (Correlated Colour Temperature) adjustable lighting
- Microwave sensor with 10m detection range and adjustable settings
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 136 lm/W
- IP20 rated powder coated steel body with PMMA diffuser
- Fixed output constant current driver included
- Non-dimmable with re-wireable terminal block wiring
- Colour Rendering Index (CRI) greater than 80
- Long LED lifetime greater than 60,000 hours (L70B10)
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor configuration.
Applications
- Commercial and industrial lighting
- Emergency and safety lighting in corridors and public spaces
- Surface mounted lighting for offices, warehouses, and retail environments
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Ipart, REES, and VEU approved for energy savings schemes
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 1200mm Diffused LED Batten with Tri-CCT and sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
