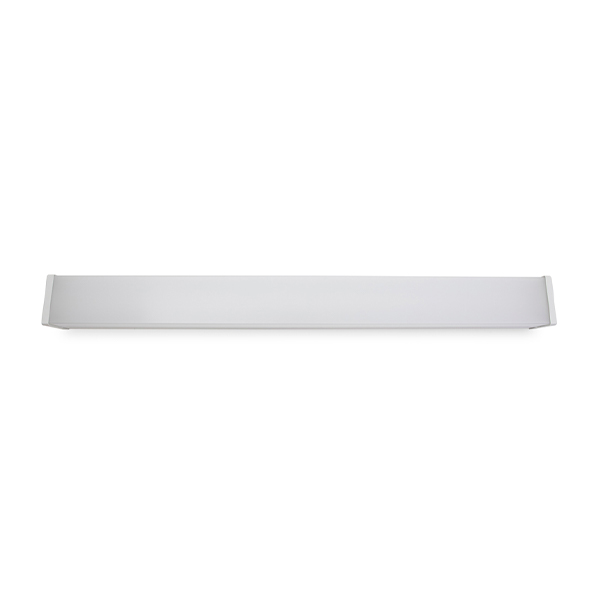

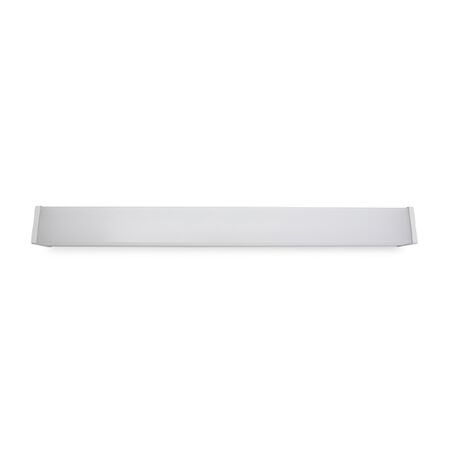

1200mm Diffused LED Batten | Tri-CCT with Sensor | 136 lm/W Efficiency | IP20 Rated | by Ektor
The 1200mm Diffused LED Batten with Tri-CCT and sensor offers adjustable color temperatures and high efficiency of up to 136 lm/W, making it perfect for commercial and industrial lighting. Designed for surface mounting, this batten features a durable powder-coated steel body and PMMA diffuser, ensuring long-lasting performance and energy savings. Ideal for corridors and emergency lighting, it combines functionality with modern design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED Batten Light, Diffused LED Batten with Sensor, Emergency LED Batten, Surface Mount LED Batten, Adjustable Colour Temperature LED Batten
Technical Specifications
- Total System Efficiency: up to 136 lm/W
- IP Rating: IP20
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Maximum Wattage: 36 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.2 A
- Standby Power: 1 W
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (4000K, 5000K, 6500K)
- Macadam Steps: 4-step MacAdam Ellipse
- LED Voltage: 42 V
- LED Current: 800 mA
- LED Lifetime: >60000 hours (L70B10 at 25°C and 40°C)
- Driver Type: Fixed output, constant current
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Sensor Type: Microwave
- Sensor Detection Range: 10 m
- Sensor Time Delay: 5 seconds to 14 minutes
- Emergency Mode: Maintained
- Emergency Output Power: 3400 mW
- Emergency Duration: 90 minutes
- Replacement Battery Code: 01302
- Product Design Life: 8 years
- Daily Use Recommendation: 16 hours
- Dimensions (H x L x W): 50mm x 1200mm x 60mm
- Weight: 1.5 kg
Key Features
- Tri-CCT (Correlated Colour Temperature) adjustable lighting
- Microwave sensor with 10m detection range and adjustable settings
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 136 lm/W
- Fixed output driver with constant current mode
- IP20 rated for indoor use
- Powder coated steel body with PMMA diffuser
- Non-dimmable with re-wireable terminal block
- Colour Rendering Index (CRI) greater than 80
- Long LED lifetime greater than 60,000 hours (L70B10)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor configuration.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Corridors and emergency lighting
- Surface mount indoor lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- High energy efficiency reduces power consumption
- Long product design life of 8 years minimizes waste
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Commercial use warranty: 5 years return-to-base with first 2 years onsite warranty. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 1200mm Diffused LED Batten with Tri-CCT and sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
