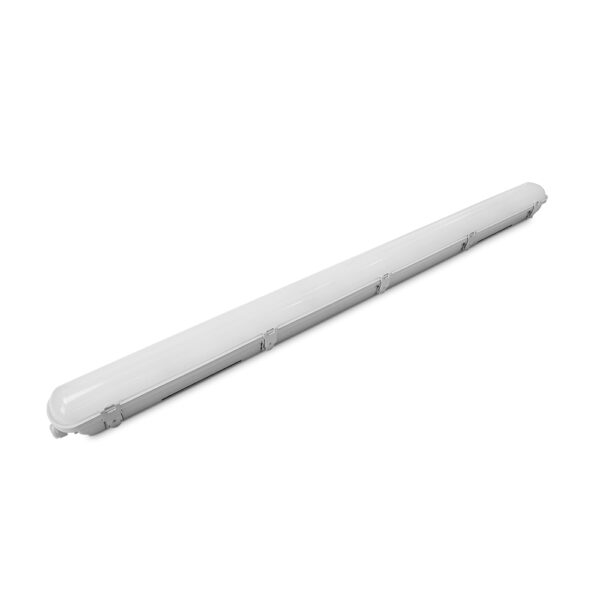

1200mm LED Batten | Tri CCT | IP65 Rated | IK08 Impact Resistance | by Ektor
The 1200mm LED Batten with Tri CCT is designed for versatile lighting solutions in commercial and industrial settings. With an IP65 rating for dust and water protection and IK08 impact resistance, this batten is built to last. It features selectable color temperatures of 4000K, 5000K, and 6500K, making it ideal for various applications, including emergency lighting and general illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 1200mm LED Batten Light, Tri CCT LED Batten, IP65 LED Batten, Emergency LED Batten Light, Surface Mount LED Batten
Technical Specifications
- Total System Efficiency: 134 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.95
- Maximum Wattage: 32 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.16 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: TRI-CCT (4000K, 5000K, 6500K)
- Macadam Steps: 6-step MacAdam Ellipse
- LED Voltage: 99 V
- LED Current: 300 mA
- LED Lifetime: >72,000 hours (L80B10 at 25°C and 40°C)
- TM-21 Test Hours: 12,000 hours
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: No
- Wiring Type: Re-wireable Flex & Plug (3 pin)
- Flex & Plug Length: 1700 mm
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Emergency Output Power: 2000 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 250 lm
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 1.5 kg
Key Features
- High system efficiency up to 134 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Tri-CCT configuration with 4000K, 5000K, and 6500K selectable colour temperatures
- Long LED lifetime greater than 72,000 hours (L80B10)
- Fixed output driver with power factor of 0.95
- Emergency mode with 90 minutes duration and 250 lm output
- Re-wireable flex & plug wiring type with 1700 mm lead
- Non-dimmable constant current driver
- Low flicker with PstLM of 0.1 and SVM of 0.4
- Grey polycarbonate body and diffuser
- Surface mount installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and correct emergency lighting setup.
Applications
- Commercial and industrial lighting
- Surface mount installations requiring IP65 rated luminaires
- Emergency lighting with combined emergency mode
- General indoor and outdoor lighting requiring tri-colour temperature options
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 15,000 operating hours.
Available Now
The Ektor UMBRA CORE 1200mm LED Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications requiring durable, efficient, and versatile LED battens.
