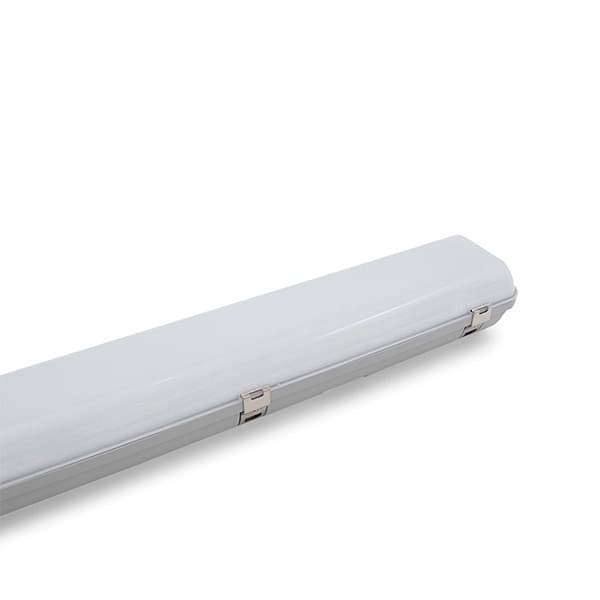

1200mm LED Batten | Tri-CCT with Microwave Sensor | IP65 Rated | by Ektor
The 1200mm LED Batten with Tri-CCT and microwave sensor is perfect for commercial and industrial lighting applications. With an IP65 rating for dust and water protection, this batten offers high efficiency up to 118 lm/W and a long LED lifetime of over 60,000 hours. Ideal for warehouses, car parks, and corridors, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Tri-CCT LED Batten, Sensor LED Batten, Emergency LED Batten, IP65 LED Batten, Surface Mount LED Batten
Technical Specifications
- Total System Efficiency: up to 118 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 36 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Current: 0.2 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: TRI-CCT (4000K, 5000K, 6500K)
- Macadam Steps: 4-step MacAdam Ellipse
- LED Voltage: 42 V
- LED Current: 800-890 mA
- LED Lifetime: >60000 hours (L70B10 at 25°C and 40°C)
- Driver Type: Fixed output, constant current
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Sensor Type: Microwave
- Sensor Detection Range: 10 m
- Sensor Time Delay: 5 seconds to 14 minutes
- Emergency Mode: Maintained with 90 minutes duration
- Emergency Output Power: 3600 mW
- Emergency Lumen Output: 400 lm
- Product Design Life: 8 years
- Daily Use Recommendation: 16 hours
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 1.5 kg
Key Features
- Tri-CCT (Colour Temperature) configuration with 4000K, 5000K, and 6500K options
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Microwave sensor with 10m detection range and adjustable settings
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 118 lm/W
- Long LED lifetime greater than 60,000 hours (L70B10)
- Fixed output driver with power factor of 0.9
- Surface mount installation with grey polycarbonate body and diffuser
- Complies with multiple Australian standards including AS/NZS 60598.1 and AS/NZS 2293.3
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal sensor configuration.
Applications
- Commercial and industrial lighting
- Warehouses and factories
- Car parks and corridors
- Outdoor covered areas requiring IP65 protection
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires for General Lighting
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 8 years reduces waste and replacement frequency
- Low standby power consumption of 1W for emergency models
- High lumen output per watt (up to 118 lm/W) maximizes lighting efficiency
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 1200mm LED Batten with Tri-CCT and sensor is available for immediate purchase. Ideal for commercial, industrial, and emergency lighting applications requiring durable and efficient luminaires.
