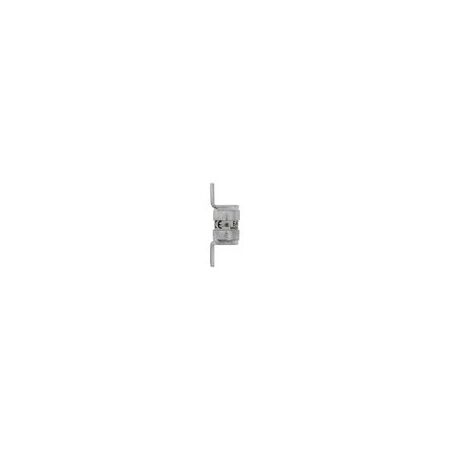

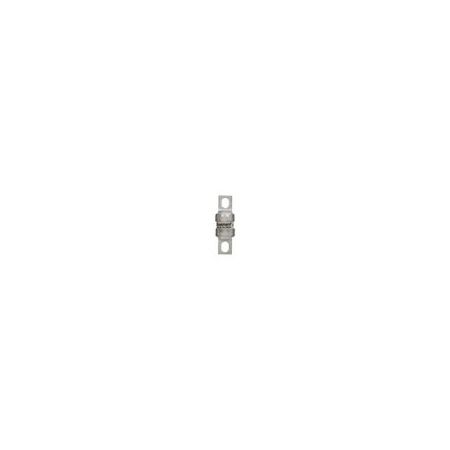

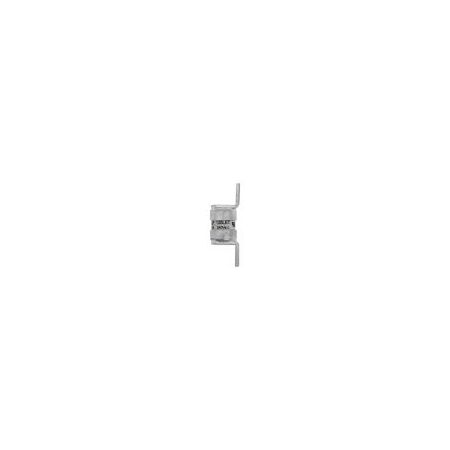

125A BS88 High Speed Fuse | 280V AC | 200kA Breaking Capacity | Stud Mounting by Eaton
125A BS88 high speed fuse with a rated voltage of 280V AC and 200kA breaking capacity—ideal for semiconductor protection and power converters. Built for reliable performance, with stud mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 125A BS88 High Speed Fuse | 280V AC | 200kA Breaking Capacity | Stud Mounting by Eaton
Brand: Eaton
SKU: 125LET
Alternatively Known As: 125A BS88 Fuse, High Speed Fuse 125A, Eaton LET Fuse 125A, Semiconductor Protection Fuse
Technical Specifications
- Amperage Rating: 125 A
- Voltage Rating: 280 V AC, 150 V DC
- Breaking Capacity: 200 kA RMS Symmetrical, 50 kA DC at 150 VDC
- Class: aR (accompanied semiconductor protection)
- Fuse Shape: Offset bolted tags
- Mounting Method: Stud
- Rated Switching Capacity: 200 kA
- Watt Losses: 16 W
- Clearing (I2T): 7500
- Pre arc (I2T): 600
- Connection: Blade end x blade end
- Fuse Type: LET
- Fuse Indicator: None
- Dimensions (H x L x W): 18mm x 55mm x 18mm
- Weight: 0.032 kg
Key Features
- High speed British standard fuse
- Class aR (accompanied semiconductor protection)
- Breaking capacity 200 kA RMS Symmetrical
- Rated voltage 280 V AC and 150 V DC
- Offset bolted tags fuse shape
- Stud mounting method
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper fuse selection and safe mounting.
Applications
- Semiconductor protection
- DC Common bus
- DC drives
- Power converters/rectifiers
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Warranty as per Eaton standard terms and conditions.
Available Now
The Eaton 125A 240V AC BS88 High Speed Fuse is available now for immediate purchase. Ideal for semiconductor and power converter protection applications.
