125mm HD Conduit 600 Radius 22.5 Degree Bend | Heavy Duty Construction | Precise Directional Changes | by Pipemakers
The 125mm HD Conduit 600 Radius 22.5 Degree Bend is designed for heavy-duty electrical conduit systems, featuring a robust construction that ensures durability and reliability. With a 22.5-degree bend angle and a 600 mm radius, it allows for precise directional changes while minimizing stress on cables. Ideal for industrial and commercial installations, this conduit bend supports safe and efficient electrical routing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 125mm HD Conduit 600 Radius 22.5 Degree Bend | Heavy Duty Construction | Precise Directional Changes | by Pipemakers
Brand: Pipemakers
SKU: 125HDCON600R225B
Alternatively Known As: 125mm Heavy Duty Electrical Sweep Bend, 125mm Conduit Bend 22.5°, HD Conduit Sweep Bend
Technical Specifications
- Nominal Size: 125 mm
- Bend Radius: 600 mm
- Bend Angle: 22.5 degrees

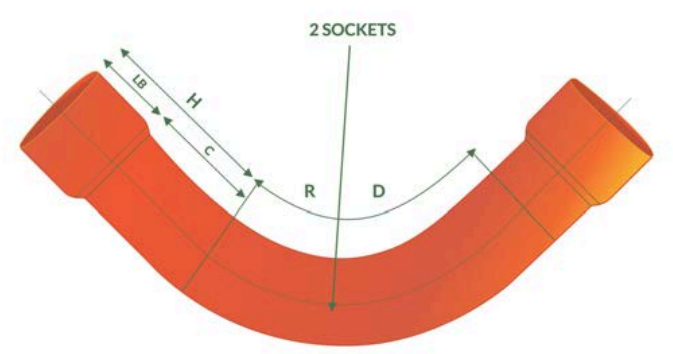

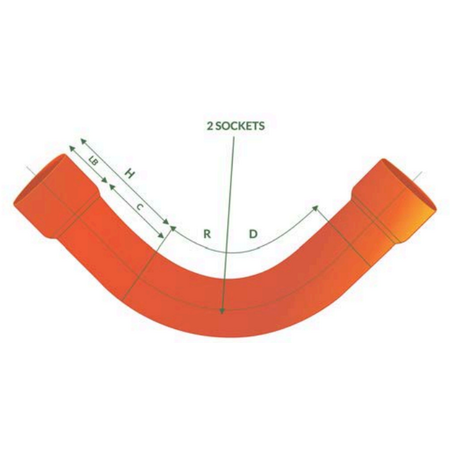

- Dimension D: 235 mm
- Dimension C: 130 mm
- Dimension Lb: 115 mm
- Material: Heavy duty conduit suitable for electrical applications
- Dimensions (H x L x W): 130mm x 115mm x 235mm
- Weight: 3.5 kg
Key Features
- Heavy duty construction for durability in electrical conduit systems
- 22.5 degree bend angle for precise directional changes
- 600 mm radius to reduce stress on cables and wiring
- Nominal size of 125 mm suitable for large conduit runs
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Electrical conduit systems requiring directional changes
- Industrial and commercial electrical installations
- Heavy duty pipe support and conduit routing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable heavy duty design reduces need for frequent replacements, minimizing waste
- Supports safe and efficient electrical installations which can improve energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to Pipemakers warranty policy for details.
Available Now
The 125mm HD Conduit 600 Radius 22.5 Degree Bend by Pipemakers is available for immediate purchase, ideal for heavy duty electrical conduit installations.
