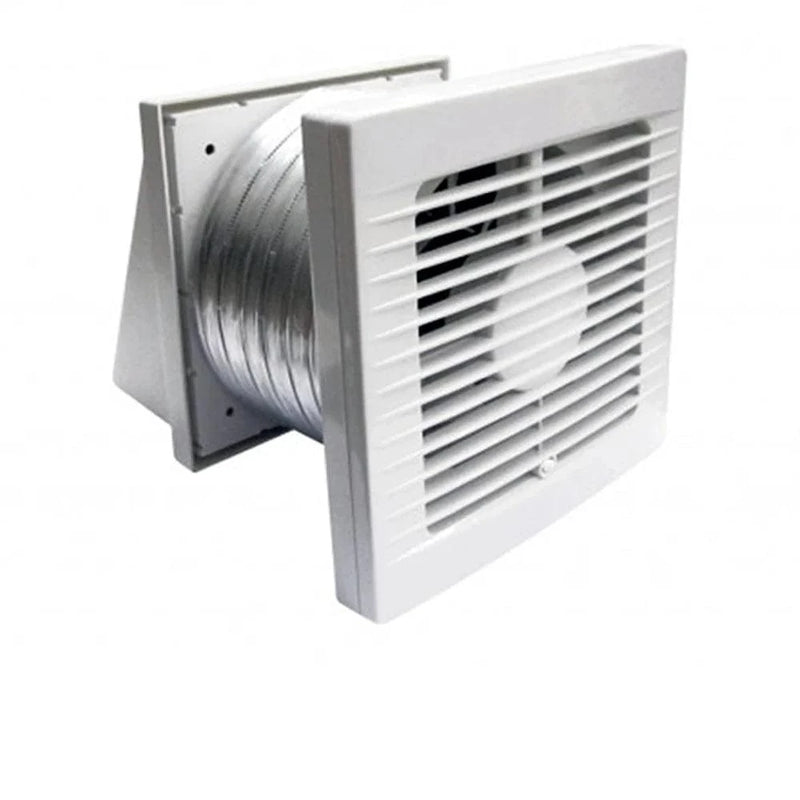

125mm Through-Wall Exhaust Fan Kit 130m³/h White Ventair
125mm Through Wall Fan Kit Standard Model 36l/s 130m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair FAN0080, 125mm Through-Wall Exhaust Fan, 125mm Axial Wall Fan Kit, Standard 125mm Exhaust Fan Kit
Technical Specifications
- Fan Type: Axial through-wall exhaust fan
- Air Delivery: 130m³/h, 36L/s
- Motor Power: 20W
- Rated Supply: 220–240V AC, 50Hz
- Noise Level: 41dB(A)
- Duct Outlet: 125mm diameter
- Cut-Out Size: 140mm diameter
- Fascia Size: 168mm x 168mm
- Ducting: 375mm aluminium semi-rigid duct
- Ingress Protection: IPX4
- Switching: Standard remote-switch operation; switch not included
- Mounting: Wall or ceiling
- Minimum Wall Cavity: 110mm
- Kit Contents: Fan, ducting, weatherproof external cowl, fixtures and cut-out template
- Motor Type: Ball-bearing motor
- Dimensions (H x L x W): 168mm x 375mm x 168mm
- Weight: 1 kg
Key Features
- Designed for straight-through external wall ventilation
- Includes a weatherproof external cowl
- Includes 375mm aluminium semi-rigid ducting
- Ball-bearing motor for extended service life
- Low-profile white fascia for discreet installation
- Suitable for wall or ceiling mounting
- Remote-switch operation
- Suitable for bathrooms, toilets, laundries and utility areas
- Assists with removal of moisture, odours and stale air
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the installation instructions and AS/NZS 3000. Do not install within a shower cubicle, and ensure the fan and electrical connections are suitably positioned for the installation area.
Applications
- Bathroom and toilet ventilation
- Laundry and utility-room extraction
- Small-room moisture and odour removal
- Residential wall or ceiling ventilation
- Straight-through external-wall exhaust applications
Standards & Compliance
- AS/NZS 60335.2.80:2025 — safety requirements for household and similar electric fans
- AS/NZS 3000 — applicable requirements for Australian electrical installations
Environmental Benefits
- 20W motor provides ventilation with relatively low electrical consumption
- Helps reduce moisture accumulation that can contribute to mould, mildew and building-material deterioration
- Ball-bearing motor construction may extend product life and reduce replacement waste
- Aluminium ducting and metal components are recyclable where suitable recycling facilities are available
Warranty Information
Covered by a five-year limited manufacturer warranty against manufacturing defects, comprising two years on parts and labour followed by an additional three-year replacement warranty on the motor. Commercial use is generally limited to one year, and installation-related faults are excluded.
Available Now
Available through authorised Ventair distributors in Australia.
