Trade Discount 25%

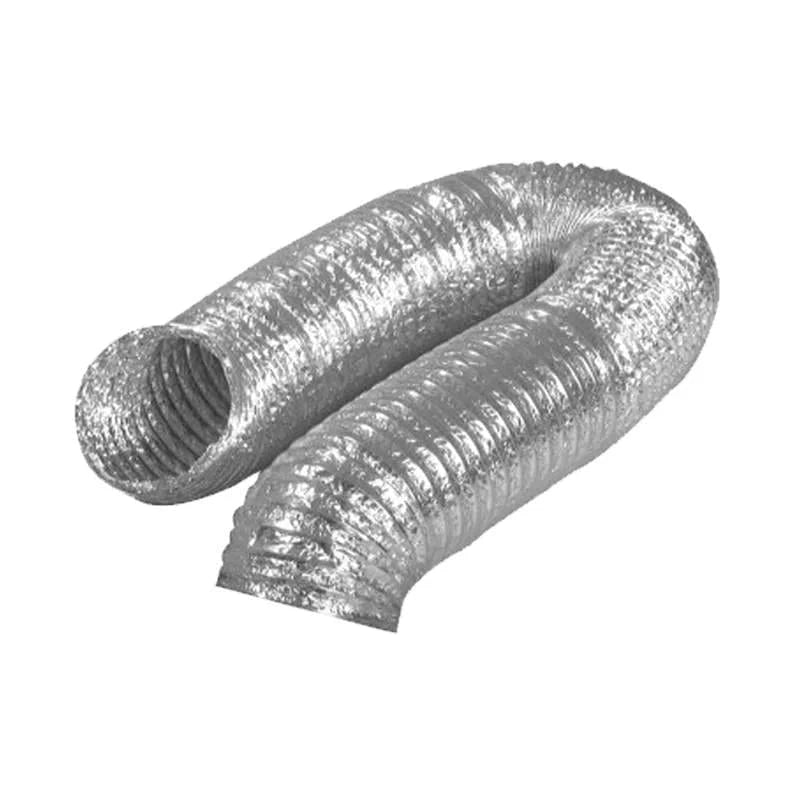

125mm x 3m Aluminium Flexible Duct Ventair
125mm x 3m Aluminium Flexible Duct by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aluduct Flexible Duct, Aluminium Flex Duct, Flexible Exhaust Ducting
Technical Specifications
- Model: DCT0329
- Duct Diameter: 125 mm
- Extended Length: 3 m
- Construction: Aluminium foil laminated onto polyester film with spiral wire reinforcement
- Finish: Silver
- Temperature Range: -10°C to +80°C
- Performance: Vapour-proof, non-collapsing and non-rotting
- Fire Rating: 3-Zero
- Compatibility: Ventair exhaust fan range
- Dimensions (H x L x W): 125mm x 3000mm x 125mm
- Weight: 0.6 kg
Key Features
- Flexible multi-layered aluminium and polyester construction
- Spiral wire reinforcement helps retain the duct shape during installation
- Vapour-proof and resistant to rotting
- Suitable for general exhaust and supply-air ventilation
- Supplied boxed as a 3 metre length
- Designed for use with compatible Ventair exhaust fans
Applications
- Bathroom exhaust fan ducting
- Laundry ventilation systems
- Toilet exhaust systems
- General residential ventilation
- Supply-air ducting
- Exhaust-air ducting connections
Standards & Compliance
- AS 4254.1 for flexible ductwork used in air-handling systems
- AS 1530.3 fire hazard properties testing
- AS 4508 thermal insulation requirements where applicable to the complete duct system
Environmental Benefits
- Aluminium content is recyclable at the end of the product’s service life
- Non-rotting construction can extend service life and reduce replacement waste
- Supports effective ventilation and indoor air quality management
Warranty Information
Covered by Ventair’s applicable product warranty and Australian Consumer Law guarantees. No specific warranty period for this duct accessory was identified; warranty periods may vary by product technical sheet.
Available Now
Available through authorised Ventair distributors in Australia.
