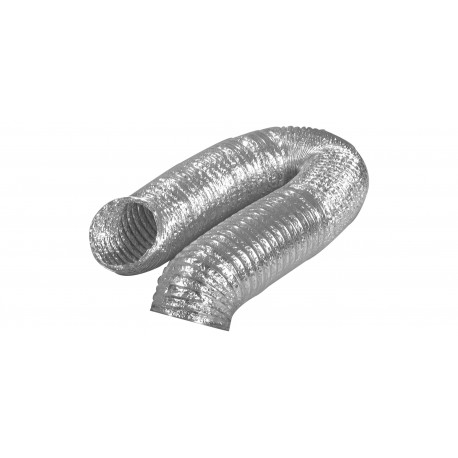

125mm x 6m Flexible Duct 3 Zero Ventair
125mm x 6m Flexible Duct 3 Zero by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 125mm Flexible Ventilation Duct, 125mm Exhaust Duct, 3-Zero Flexible Duct, Silver Foil Ducting
Technical Specifications
- Model: VAD125-6
- Duct Type: Flexible, non-insulated
- Material: Multi-layered aluminium foil with metallic reinforcement
- Nominal Diameter: 125mm
- Duct Length: 6000mm
- Colour: Silver
- Fire Rating: 3-Zero rating to AS 4254
- Intended Airflow: General exhaust and supply air
- Dimensions (H x L x W): 125mm x 6000mm x 125mm
- Weight: 0.7 kg
Key Features
- Flexible multi-layered construction for general-purpose ventilation
- 125mm diameter suits compatible Ventair exhaust fans and ventilation fittings
- 6m length accommodates extended ventilation runs
- Metallic reinforcement helps retain duct shape and improves tear resistance
- Non-insulated design for general exhaust and supply-air applications
- Lightweight and easy to handle during installation
Professional Installation Requirements
- Installation should be completed by a suitably competent person. Keep the duct as short, straight and round as practical, avoid crushing or sharp bends, and secure all connections to maintain airflow.
Applications
- Bathroom exhaust ventilation
- Laundry and toilet ventilation
- Ensuite exhaust systems
- Residential exhaust fan systems
- Commercial general ventilation
- General supply-air and heat-transfer ventilation runs
Standards & Compliance
- Ventair identifies the product range as having a 3-Zero fire rating to AS 4254; flexible ductwork is covered by AS 4254.1:2021.
- Installation must also meet the applicable National Construction Code requirements for ductwork insulation, sealing and ventilation systems.
Environmental Benefits
- Aluminium components can be recycled through appropriate metal-recovery facilities at end of service life.
- Durable reinforced construction can help reduce replacement frequency and associated material waste.
- Lightweight construction may reduce handling and transport impacts compared with heavier rigid ducting.
- Supports effective ventilation and moisture management when correctly sized and installed.
Warranty Information
No product-specific warranty period was identified for the VAD125-6. Ventair’s published warranty terms and Australian Consumer Law consumer guarantees apply where relevant; confirm coverage with the supplier before purchase.
Available Now
Available through authorised Ventair distributors in Australia.
