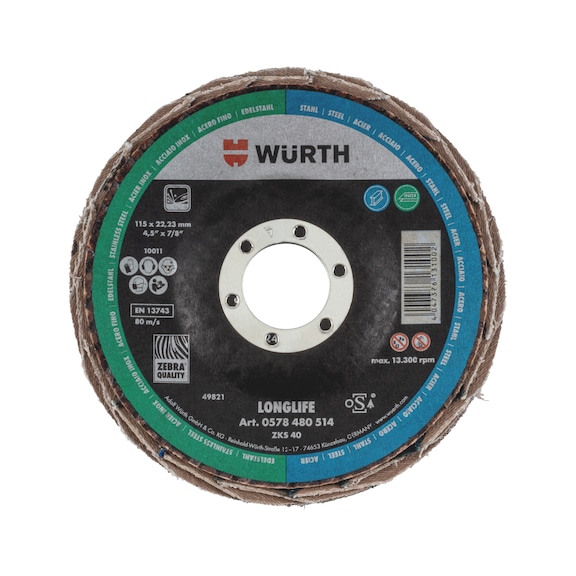

125mm Zirconium Corundum Lamella Flap Disc | Patented Segment Shape | High Material Removal | Rugged Glass Fabric | by Wurth
The 125mm Zirconium Corundum Lamella Flap Disc is designed for freehand grinding with electric or pneumatic grinders, offering a patented segment shape for optimal grinding efficiency. With an extremely long service life and high material removal capability, this disc is perfect for machining and polishing tasks, ensuring minimal vibrations and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 125mm Zirconium Corundum Lamella Flap Disc | Patented Segment Shape | High Material Removal | Rugged Glass Fabric | by Wurth
Brand: Wurth
SKU: 578480526
Alternatively Known As: Lamella flap disc, Zirconium grinding disc, Abrasive flap disc, Grinding wheel disc
Technical Specifications
- Diameter: 125 mm
- Bore hole: 22.23 mm
- Grid size: 60
- Design: Straight
- Material of carrier disc: Glass fabric
- Max. rotation speed: 12250 rpm
- Max. recommended rotation speed: 7500 rpm
- Material of abrasive medium: Zirconium corundum
- Dimensions (H x L x W): 5mm x 125mm x 125mm
- Weight: 0.2 kg
Key Features
- Patented segment shape and arrangement for optimal grinding
- Extremely long service life with very high degree of material removal
- High-performance abrasive cloth with additional grinding-active topcoat
- Rugged glass fabric carrier disc
- Free from iron, chlorine, and sulphur (≤ 0.1%)
- Minimal vibrations compared to conventional rough grinding discs
- Prevents 'white-finger disease' and is easy on machines
- Max. circumferential speed 80 m/s
Professional Installation Requirements
- Use with appropriate electric or pneumatic grinders by trained personnel following safety guidelines.
Applications
- Freehand grinding with electric or pneumatic grinders
- Grinding edges with high material removal efficiency
- Suitable for machining and polishing tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and frequency of disc replacement
- Free from harmful elements like iron, chlorine, and sulphur
- Efficient material removal reduces energy consumption during grinding
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth 125mm Zirconium Corundum Lamella Flap Disc is available for immediate purchase, ideal for machining and grinding applications requiring high efficiency and durability.
