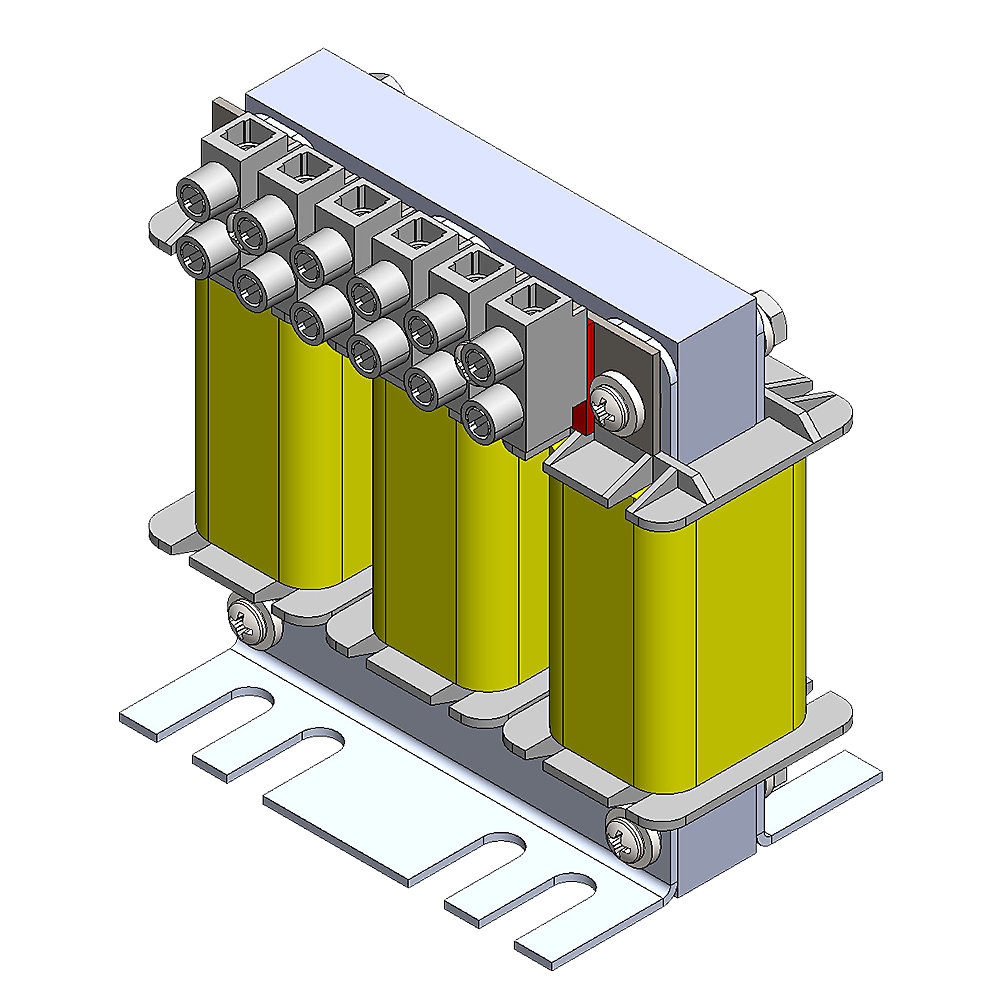

12A Line Reactor Open Frame Harmonic Reduction & Motor Protection Easy Integration by Allen-Bradley
The 12A Line Reactor Open Frame is designed for harmonic reduction and motor protection, making it ideal for industrial motor control and power quality applications. With its open frame design, it integrates easily into variable frequency drives and motor control systems, ensuring optimal performance and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12A Line Reactor, Open Frame Line Reactor, Motor Line Reactor
Technical Specifications
- Current Rating: 12A
- Type: Open frame line reactor
- Function: Harmonic reduction and motor protection
- Application: Suitable for use with variable frequency drives and motor control systems
- Dimensions (H x L x W): 120mm x 150mm x 100mm
- Weight: 1.5 kg
Key Features
- Open frame design for easy integration
- Rated current: 12 Amps
- Reduces harmonic distortion and electrical noise
- Protects motors and drives from voltage spikes
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial motor control and protection
- Power quality improvement in electrical systems
- Reduction of harmonic distortion in variable frequency drives
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by reducing harmonic losses
- Extends equipment life, reducing waste and replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Line Reactor Open 12A is available for immediate purchase, ideal for industrial motor control and power quality applications.
