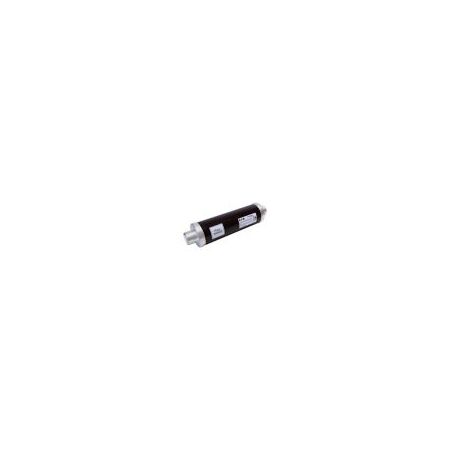

12kV Full Range Fuse 80A | 50kA Breaking Capacity | Clip-in Mounting | Eaton
12kV full range fuse with an 80A amperage rating and 50kA breaking capacity—ideal for transformer protection in industrial and utility systems. Built for reliable performance, featuring a striker indicator and clip-in mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 12kV Full Range Fuse 80A | 50kA Breaking Capacity | Clip-in Mounting | Eaton
Brand: Eaton
SKU: 12FXLSJ80
Alternatively Known As: 12KV 80A Medium Voltage Fuse, 12FXLSJ80 Fuse, FXLSJ 80 Amp Fuse, Eaton Medium Voltage DIN Fuse
Technical Specifications
- Amperage Rating: 80 A
- Voltage Rating: 12 kV AC
- Fuse Size: 88 x 292 mm
- Breaking Capacity: 50 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Full-range according to IEC 60282-1
- Resistance: 5.64 Ohms
- Watt Losses: 72 W
- Mounting Method: Clip-in
- Rated Frequency: 50 Hz
- Interrupt Rating: 50 kAIC
- Fuse Type: FXLSJ
- Construction Size: 88 x 292 mm
- Dimensions (H x L x W): 104mm x 292mm x 88mm
- Weight: 4 kg
Key Features
- 80 A amperage rating
- 12 kV voltage rating
- Full-range fuse with striker indicator
- Breaking capacity of 50 kA
- Clip-in mounting method
- Air installation technique
- Fuse type FXLSJ
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional experienced with medium voltage equipment to ensure safety and compliance.
Applications
- Primary side transformer protection
- Indoor or outdoor transformer protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed for high reliability to reduce downtime and waste
- Supports efficient electrical system protection to prevent damage and energy loss
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 12KV 80AMP 88MM Full Range Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and utility electrical systems.
