12KV Medium Voltage Fuse 63A | Full-Range Performance | With Striker | Eaton
The 12KV medium voltage fuse with a 63A rating is designed for transformer protection, featuring full-range performance and a striker for fuse indication. Ideal for industrial and commercial applications, it ensures reliable operation with a breaking capacity of 50 kA and a durable bolt-on construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

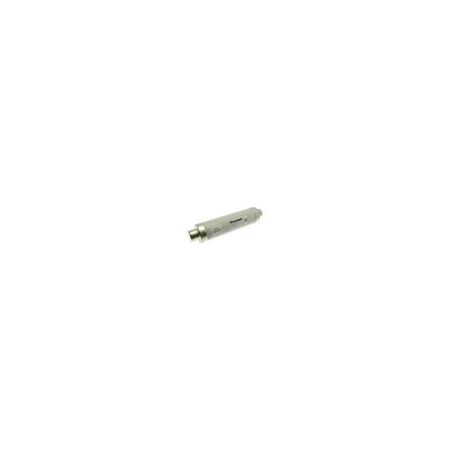

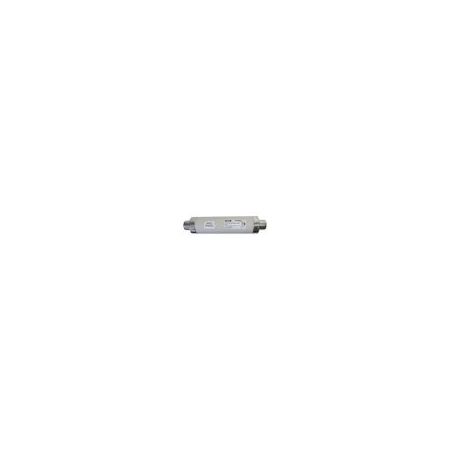

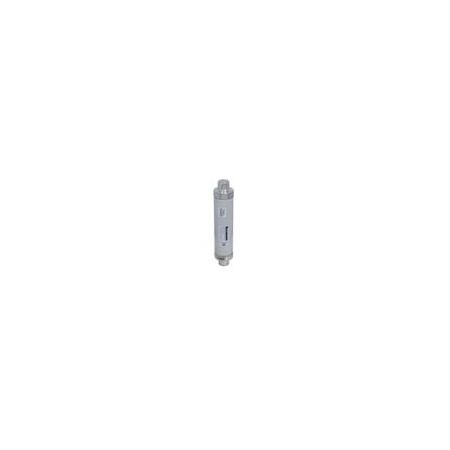

Product Name/Title: 12KV Medium Voltage Fuse 63A | Full-Range Performance | With Striker | Eaton
Brand: Eaton
SKU: 12FFLSJ63
Alternatively Known As: 12KV Medium Voltage Fuse, 63 Amp DIN Fuse, Full Range DIN Fuse, Transformer Protection Fuse, Eaton Bussmann Fuse
Technical Specifications
- Amperage Rating: 63 A
- Voltage Rating: 12 kV AC
- Fuse Size: 76 x 292 mm
- Breaking Capacity: 50 kA
- Fuse Indicator: With Striker
- Performance Category: Full-range according to IEC 60282-1
- Installation Technique: Air
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Element Material: Silver
- Resistance: 12.4 Ohms
- Watt Losses: 72 W
- Interrupt Rating: 50 kAIC
- Frequency Rating: 50 Hz
- Dimensions (H x L x W): 76mm x 292mm x 76mm
- Weight: 3.16 kg
Key Features
- Medium voltage DIN fuse with 63 A amperage rating
- Full-range performance according to IEC 60282-1
- With striker for fuse indication
- Bolt-on construction type with clip-in mounting method
- Silver element for reliable performance
- Breaking capacity of 50 kA
- Rated voltage of 12 kV AC
- Air installation technique
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with medium voltage electrical equipment to ensure safety and compliance with standards.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
- High breaking capacity enhances electrical system safety, preventing damage and environmental hazards.
Warranty Information
Warranty details available upon request from Eaton, typically covering manufacturing defects.
Available Now
The Eaton 12KV 63Amp 3" Full Range Fuse is available for immediate purchase, ideal for transformer protection in industrial and commercial electrical systems.
