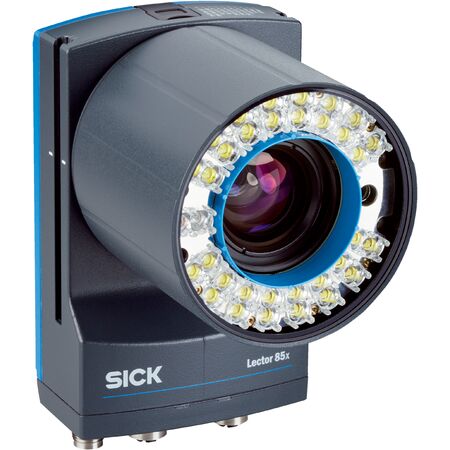

12MP CMOS Barcode Scanner | Adjustable Optical Focus | Integrated LED Illumination | by SICK
The 12MP CMOS Barcode Scanner is designed for indoor industrial automation, featuring an adjustable manual optical focus and integrated red LED illumination. With a robust aluminum housing and IP65 rating, it excels in quality control and inspection systems, ensuring reliable performance in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated red LED illumination with 32 LEDs
- Risk group 1 low risk LED and laser classes
- C-mount lens with 25 mm focal length and aperture range 1.8 to 22
- Scanning frequency of 15 Hz at full resolution
- Reads 1D, 2D, and stacked barcodes including QR, Data Matrix, PDF417
- Multiple interfaces: Ethernet (Gigabit), CAN, Serial (RS-232/422), USB 2.0
- Robust aluminum die cast housing with IP65 rating
- Wide ambient operating temperature 0°C to +50°C
- Web server operator interface and SOPASair configuration software
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper electrical and network connections and compliance with safety standards.
Applications
- Indoor area industrial automation
- Barcode and 2D code reading in manufacturing
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing and long MTBF (100,000 hours) reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK V2D8512R-1MCMEXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial automation and barcode reading applications.
