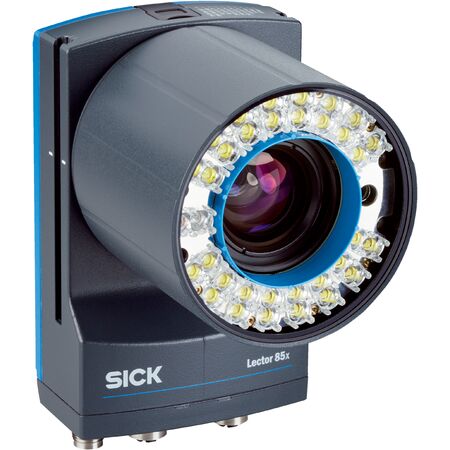

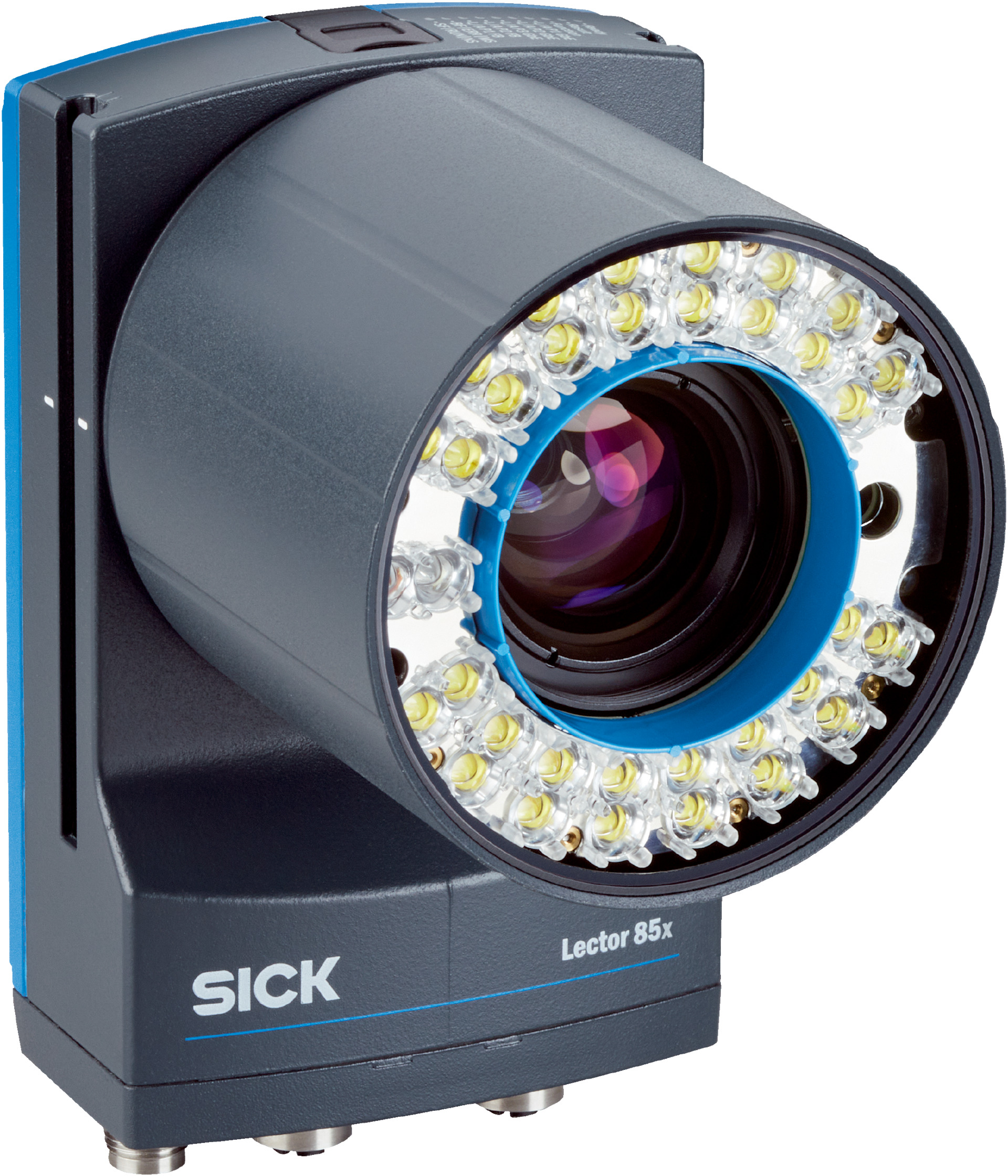

12MP Industrial Camera | CMOS Sensor with Integrated LED | Adjustable Focus | IP65 Rated | by SICK
The 12MP Industrial Camera features a high-resolution CMOS sensor with 4096 x 3008 px resolution and integrated white LED illumination, making it ideal for indoor industrial applications requiring precise code reading. With adjustable optical focus and robust IP65-rated housing, this camera ensures reliable performance in challenging environments, perfect for manufacturing and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Optical filter: Polarizing filter
- Optical focus: Adjustable manual
- Lens: C-mount, 1" optical format, 16 mm focal length, aperture 1.8 to 16
- Scanning frequency: 15 Hz at 12 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- Interfaces: Ethernet (10/100/1000 Mbit/s), CAN (500 kbit/s), Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, encoder input, external trigger
- Configurable digital inputs/outputs: 13
- Optical indicators: 12 LEDs (status and feedback)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated white LED illumination with 32 LEDs and 47° aperture angle
- Adjustable manual optical focus with C-mount lens, 16 mm focal length, aperture 1.8 to 16
- Supports reading of 1D, 2D, and stacked codes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces including Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Laser alignment aid (Class 1) and visible LED feedback spots (green and red)
- Operating temperature range 0°C to +50°C with high vibration and shock resistance
- Power supply 24 V DC with typical power consumption of 24 W
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Indoor area industrial applications requiring high-resolution code reading and imaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Integrated LED illumination reduces external lighting needs, lowering energy consumption
- Durable housing and long MTBF (100,000 hours) reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MCIDPAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial applications requiring high-precision code reading and imaging.
