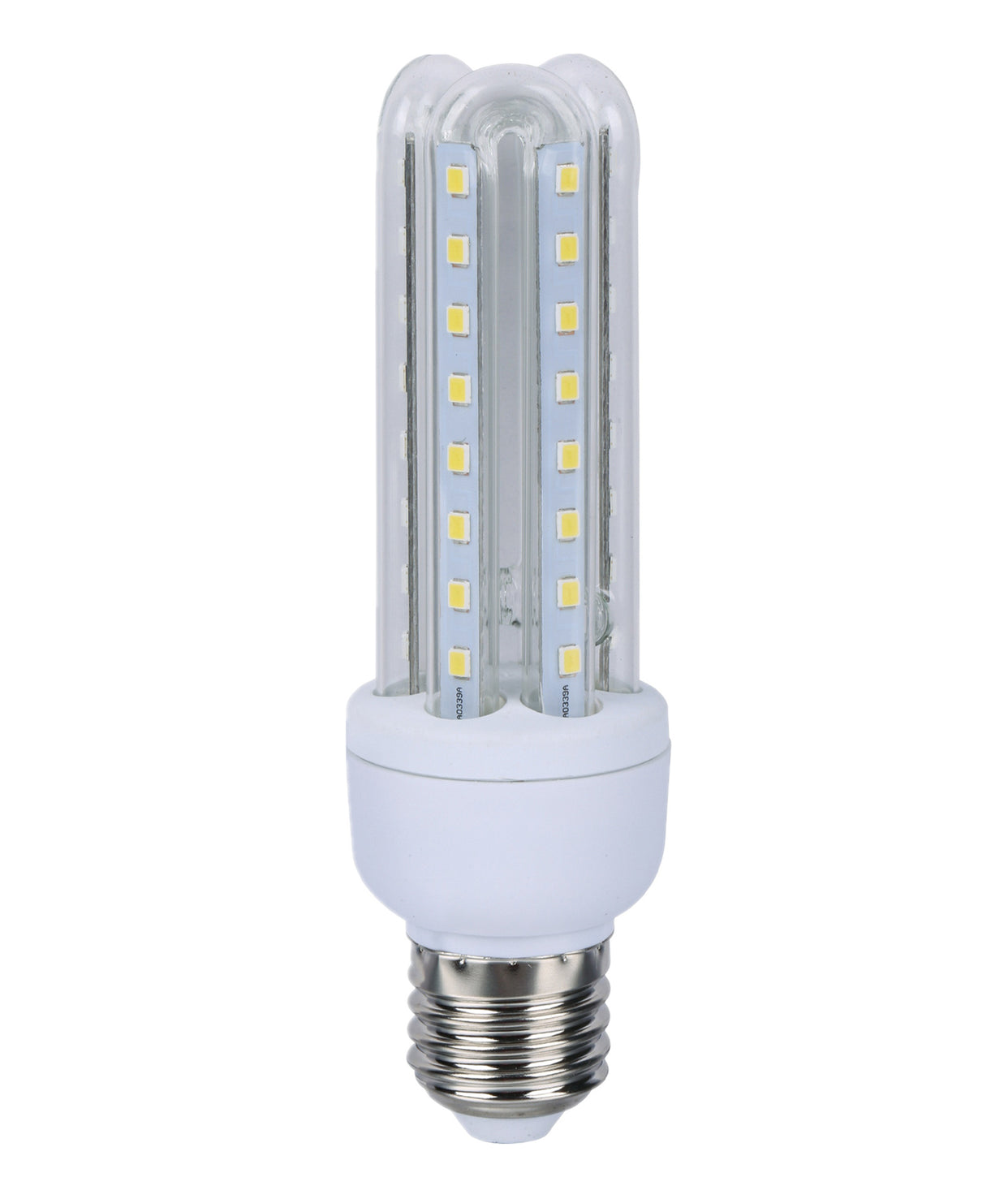

12V AC/DC 3U LED Globes | 9W Power | 4000K Neutral White | 270° Beam Angle | by CLA Lighting
The 12V AC/DC 3U LED Globes deliver bright illumination with 48pcs of 2835 LED chips, making them perfect for residential and commercial low voltage lighting. With a neutral white color temperature of 4000K and a wide 270° beam angle, these globes ensure efficient light distribution. Designed for compatibility with iron core transformers, they are ideal for various indoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 12V AC/DC 3U LED Globes | 9W Power | 4000K Neutral White | 270° Beam Angle | by CLA Lighting
Brand: CLA Lighting
SKU: 3U002
Alternatively Known As: 12V LED Globe, 3U LED Globe, 9W LED Bulb, 12V AC/DC LED Lamp, Neutral White LED Globe
Technical Specifications
- Input Voltage: 12V AC/DC 50/60Hz
- Nominal Current: 1A
- Material: PBT housing and glass diffuser
- Wattage: 9W
- LED Chips: 48pcs 2835 LEDs
- Colour Temperature: 4000K
- Lumens Output: 760lm
- Beam Angle: 270°
- Power Factor: 0.5
- CRI: 80
- Operating Temperature: -15 to 50°C
- IP Rating: IP20
- Not suitable for dimming
- Recommended use with iron core transformers and constant voltage LED drivers

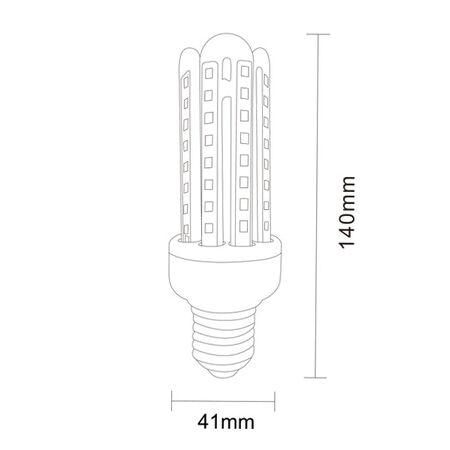

- Dimensions (H x L x W): 140mm x 41mm x 41mm
- Weight: 0.1 kg
Key Features
- Input voltage: 12V AC/DC 50/60Hz
- Wattage: 9W
- 48pcs 2835 LED chips for bright illumination
- Colour temperature: 4000K (neutral white)
- Beam angle: 270 degrees for wide light distribution
- Power factor: 0.5
- CRI: 80 for good colour rendering
- Ambient operating temperature: -15 to 50°C
- IP20 rated for indoor use
- Not suitable for dimming
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compatibility with 12V AC/DC systems and transformers.
Applications
- Residential lighting: Suitable for 12V AC/DC lighting fixtures
- Commercial lighting: Low voltage LED lighting applications
- Suitable for use with iron core transformers and constant voltage LED drivers
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient LED technology reduces power consumption compared to traditional incandescent globes.
- Long lifespan reduces waste and replacement frequency.
Warranty Information
2 year replacement warranty.
Available Now
The CLA Lighting 12V AC/DC 3U LED Globe 9W is available now for immediate purchase. Ideal for low voltage indoor lighting applications requiring efficient and reliable LED globes.
