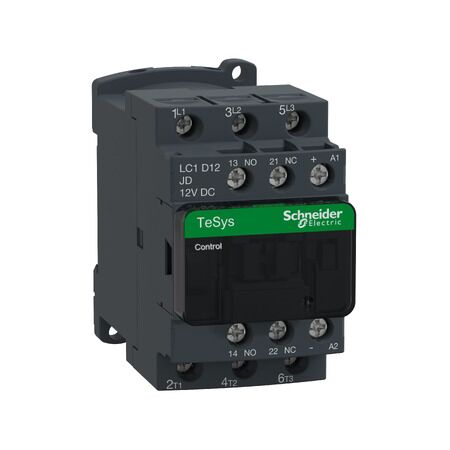

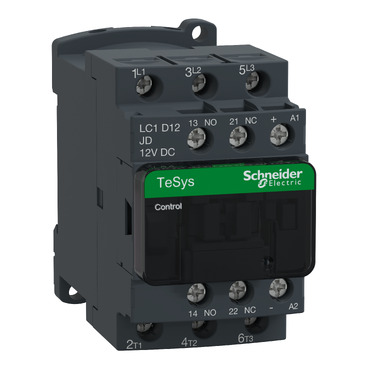

12V DC Contactor | 5.5kW Switching Power | 12A Rated Current | DIN Rail Mountable | @Pack of 1 | by Clipsal
The 12V DC Contactor is designed for reliable low-voltage control, featuring a 5.5kW switching capacity and a rated operational current of 12A. Ideal for controlling lighting circuits and electric motors, this compact DIN rail mountable device ensures high electrical and mechanical endurance, making it perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 12V DC Contactor | 5.5kW Switching Power | 12A Rated Current | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1D12JD
Alternatively Known As: 12V DC Contactor, 5.5kW Contactor, 12A Contactor, Clipsal Motor Contactor, SCHLC1D12JD
Technical Specifications
- Coil Voltage: 12V DC
- Rated Operational Current: 12A (AC-3)
- Switching Power: 5.5kW (AC-3, 400V)
- Number of Poles: 3
- Mounting: DIN rail
- Electrical Endurance: 1,000,000 operations
- Mechanical Endurance: 10,000,000 operations
- Ambient Temperature: -5°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.35 kg
Key Features
- 12V DC coil voltage for reliable low-voltage control
- Rated operational current: 12A
- Switching capacity up to 5.5kW (AC-3)
- Compact DIN rail mountable design
- High electrical and mechanical endurance
- Suitable for both AC and DC control circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Control of lighting circuits
- Switching of electric motors
- Automation panels
- HVAC systems
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Enables efficient energy management by automating electrical loads
- Reduces manual switching, minimizing energy waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Contactor 12V DC Coil 5.5kW 12A SCHLC1D12JD is available for immediate purchase. Ideal for industrial and commercial automation and motor control applications.
