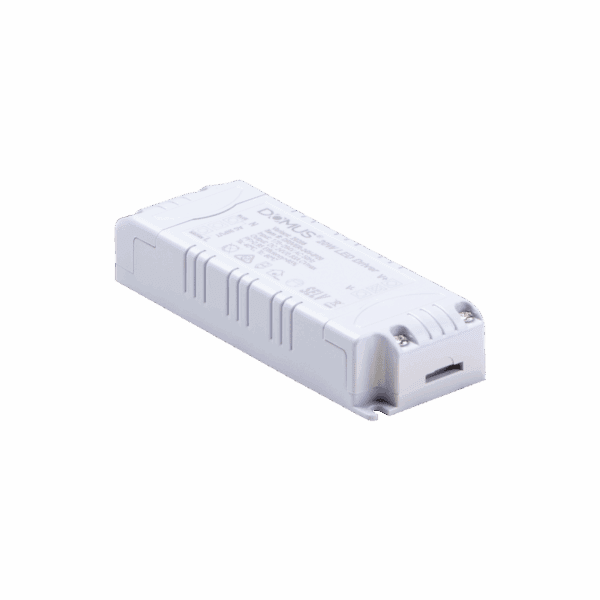

12V DC Dimmable LED Driver | Triac Dimming | Short Circuit Protection | IP20 Rated | by Domus Lighting
The 12V DC Dimmable LED Driver is perfect for indoor LED lighting applications, providing smooth brightness control with triac dimming. Designed for safety, it features short circuit and thermal overload protection, making it ideal for LED strip lighting and garden spike lighting. With a 5-year replacement warranty, this driver ensures reliable performance for your lighting needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Dimmable LED Power Supply, LED Strip Driver, Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 220-240V AC
- Output Voltage: 12V or 24V DC constant voltage
- Power Options: 20W, 30W, 60W, 100W
- IP Rating: IP20 (Indoor use only)
- Dimmable: Triac dimmable with suitable dimmers
- Protections: Short circuit, thermal overload, over temperature, over voltage
- Wiring: Parallel wiring supported
- Cable: Includes 1M flex and plug
- Dimensions (H x L x W): 30mm x 60mm x 120mm
- Weight: 0.3 kg
Key Features
- Triac dimmable for smooth brightness control
- Secondary side short circuit protection
- Thermal overload protection
- Over temperature protection
- Over voltage protection
- Comes with 1M flex and plug
- Parallel wiring supported
- Available in 20W, 30W, 60W, and 100W wattages
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Indoor LED strip lighting
- Inground uplighters
- Garden spike lighting
- Other indoor LED lighting requiring 12V or 24V DC constant voltage
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED driver reduces power consumption.
- Supports dimming to lower energy use and extend LED lifespan.
Warranty Information
5 Year replacement warranty.
Available Now
The Domus Lighting DRIVER 12V DC IP20 Dimmable LED Driver is available now for immediate purchase. Ideal for indoor LED lighting applications requiring dimmable constant voltage power supply.
