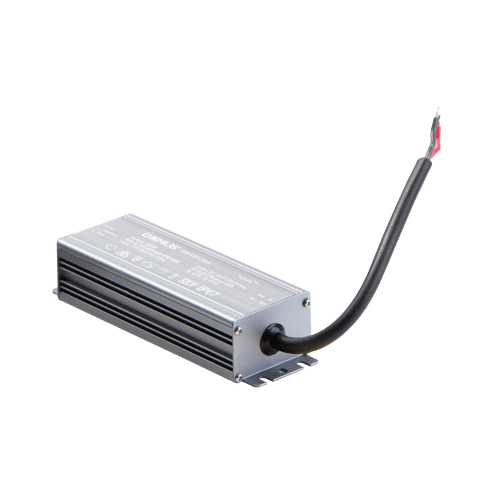

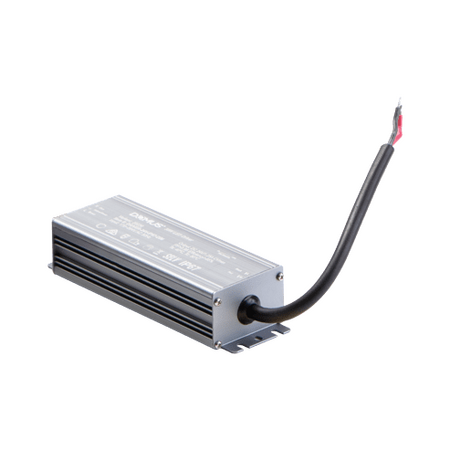

12V Dimmable LED Driver | IP67 Rated | Triac Dimmable | 30W-200W Options | by Domus Lighting
The 12V Dimmable LED Driver is designed for outdoor LED lighting applications, featuring an IP67 rating for durability and triac dimming capabilities. With multiple power options ranging from 30W to 200W, it ensures reliable performance for garden spike lighting, inground uplighters, and more. Built with safety in mind, it includes secondary side short circuit protection and thermal overload safeguards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Outdoor LED Driver, IP67 LED Driver, Dimmable LED Power Supply
Technical Specifications
- Input Voltage: 12V or 24V DC
- Power Options: 30W, 60W, 100W, 150W, 200W
- Protection: Secondary side short circuit, thermal overload, over temperature, over voltage
- Dimmable: Fully dimmable with suitable dimmers
- Ingress Protection: IP67
- Wiring: Parallel wiring supported
- Includes 1M flex and plug
- Dimensions (H x L x W): 40mm x 70mm x 120mm
- Weight: 0.5 kg
Key Features
- Triac dimmable 12V or 24V DC constant voltage LED driver
- Secondary side short circuit protection
- Thermal overload protection
- Over temperature protection
- Over voltage protection
- Comes with 1M flex and plug
- Suitable for outdoor use
- Available in 30W, 60W, 100W, 150W, and 200W wattages
- Supports parallel wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Outdoor LED strip lighting
- Inground uplighters
- Garden spike lighting
- Other outdoor LED lighting applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED driver reduces power consumption.
- Durable IP67 rating ensures long product life in outdoor environments, reducing waste.
Warranty Information
5 Year replacement warranty.
Available Now
The Domus Lighting DRIVER 12V DC IP67 Dimmable LED Driver is available for immediate purchase, ideal for outdoor LED lighting projects requiring reliable and dimmable power supply.
