Trade Discount 17%

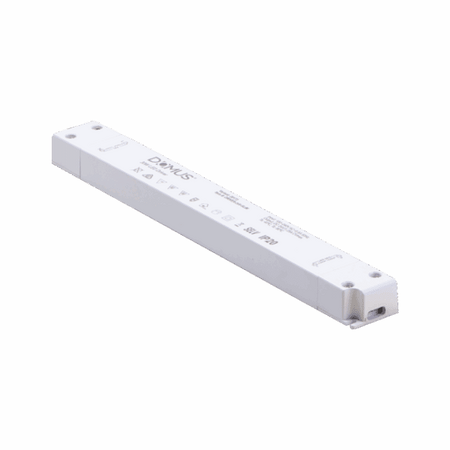

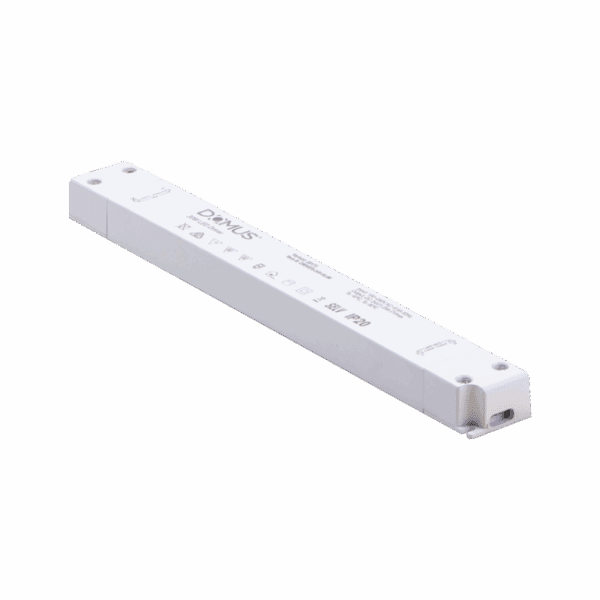

12V LED Driver | 5-in-1 Dimmable Options | Indoor Slim Design | by Domus Lighting
The 12V LED Driver with 5-in-1 dimming options is perfect for indoor LED strip lighting and profiles. Designed for safety with secondary side short circuit protection and thermal overload safeguards, this driver ensures reliable performance. Ideal for professional installations, it supports various dimming methods and includes a 1M flex and plug for easy setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, 5-in-1 Dimmable LED Driver, Slim LED Driver, Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 12V DC constant voltage output
- Dimming Options: Triac, 0-10V, 1-10V, 10W PWM, Potentiometer
- Protection: Secondary side short circuit, thermal overload, over temperature, over voltage
- Wattage Options: 30W, 60W, 100W
- Indoor use only
- Includes 1M flex and plug
- Supports parallel wiring
- Dimensions (H x L x W): 30mm x 50mm x 150mm
- Weight: 0.3 kg
Key Features
- Indoor slim linear design
- 5-in-1 dimming options: Triac, 0-10V, 1-10V, 10W PWM, Potentiometer
- Secondary side short circuit protection
- Thermal overload, over temperature, and over voltage protection
- Comes with 1M flex and plug
- Parallel wiring supported
- Fully Triac dimmable with suitable dimmers
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Indoor LED strip lighting
- LED profiles
- General indoor LED lighting requiring constant voltage drivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Dimmable functionality allows for reduced energy use and extended LED lifespan
Warranty Information
5 Year replacement warranty.
Available Now
The Domus Lighting DRIVER 12V IP20 Linear 5 In 1 Dimmable LED Driver is available now for immediate purchase. Ideal for indoor LED strip lighting and profile applications.
