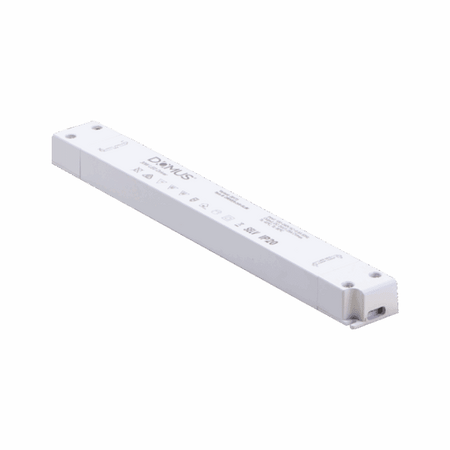

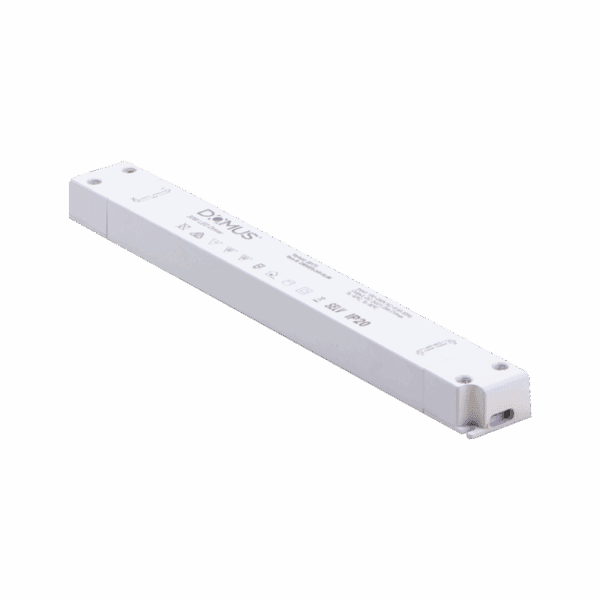

12V LED Driver | 5-in-1 Dimmable Options | Indoor Slim Design | by Domus Lighting
The 12V LED Driver offers versatile 5-in-1 dimming options, including Triac and 0-10V, making it perfect for indoor LED strip lighting and profiles. Designed for energy efficiency, it features secondary side short circuit protection and is ideal for low voltage LED systems requiring constant voltage drivers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12V LED Driver, Slim LED Driver, 5-in-1 Dimmable LED Driver, Constant Voltage LED Driver
Technical Specifications
- Input Voltage: 12V or 24V DC constant voltage output
- Dimming Options: Triac, 0-10V, 1-10V, 10W PWM, Potentiometer
- Protection: Secondary side short circuit, thermal overload, over temperature, over voltage
- Wattage Options: 30W, 60W, 100W
- Indoor use only
- Parallel wiring supported
- Includes 1 meter flex and plug
- Dimensions (H x L x W): 30mm x 50mm x 150mm
- Weight: 0.3 kg
Key Features
- Indoor slim linear design
- 5-in-1 dimming options: Triac, 0-10V, 1-10V, 10W PWM, and Potentiometer
- Secondary side short circuit protection
- Thermal overload, over temperature, and over voltage protection
- Comes with 1 meter flex and plug
- Parallel wiring supported
- Fully Triac dimmable with suitable dimmers
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Indoor LED strip lighting
- LED profiles
- Other low voltage LED lighting systems requiring constant voltage drivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED driver reduces power consumption
- Supports dimming to lower energy use and extend LED lifespan
Warranty Information
5 Year replacement warranty.
Available Now
The Domus Lighting DRIVER 12V IP20 Linear 5 In 1 Dimmable LED Driver is available now for immediate purchase. Ideal for indoor LED strip lighting and profile applications.
