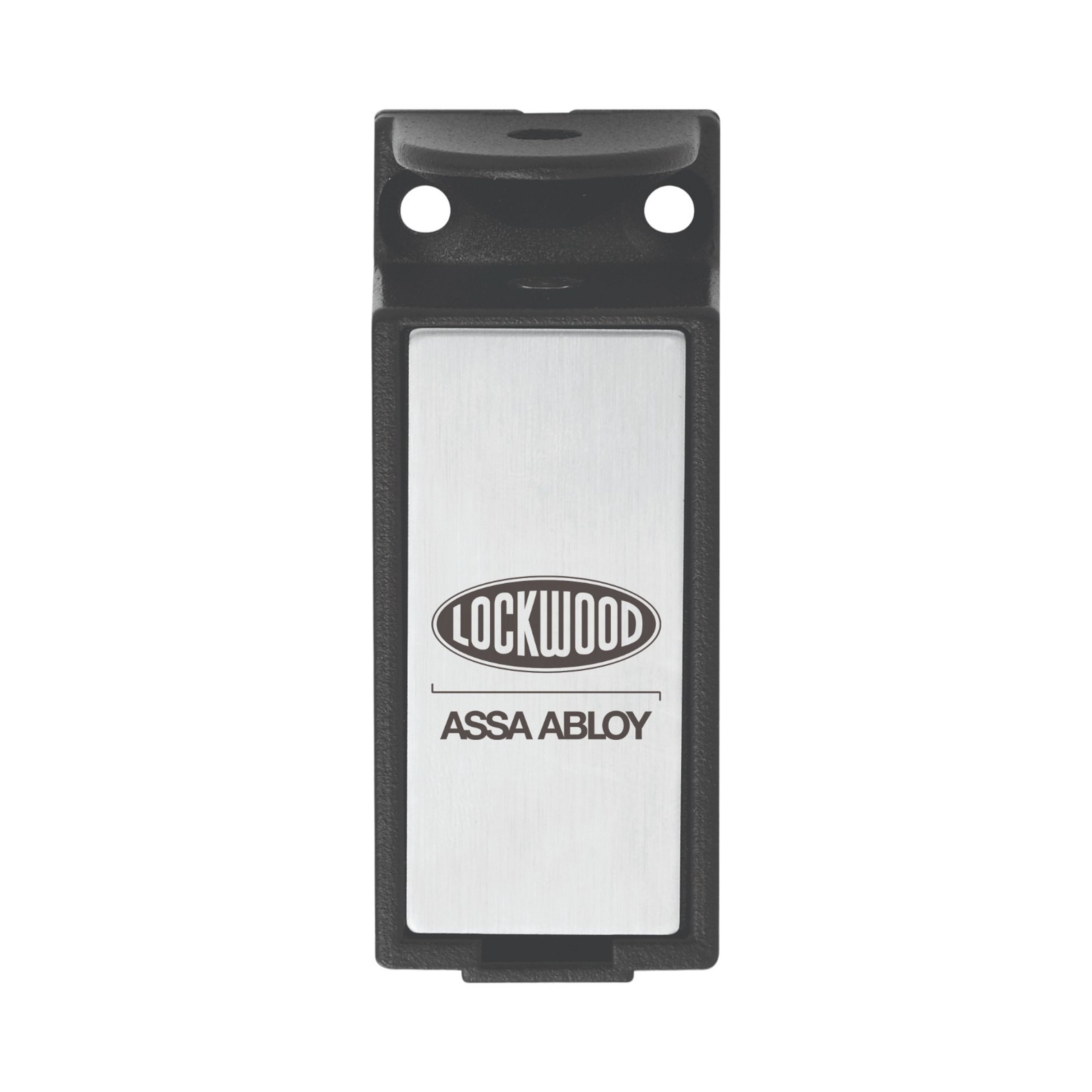

12VDC Fail Secure Cabinet Lock | Compact Cast Aluminium Design | 150kg Holding Force | by Lockwood
The 12VDC Fail Secure Cabinet Lock is designed for robust cabinet security, featuring a compact cast aluminium body and a holding force of 150kg. Ideal for commercial and industrial applications, this lock integrates seamlessly with existing access control systems, ensuring reliable performance and easy installation. With a cycle-tested endurance of 1,000,000 operations, it’s built to last and offers peace of mind for your valuable assets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 12VDC Fail Secure Cabinet Lock | Compact Cast Aluminium Design | 150kg Holding Force | by Lockwood
Brand: Lockwood
SKU: EL110-2
Alternatively Known As: Electric Cabinet Lock, Fail Secure Cabinet Lock, 12V Cabinet Lock, EL110 Lock
Technical Specifications
- Voltage: 12Vdc
- Current: 187mA @ 12Vdc
- Solenoid: Rated for continuous use
- Monitoring: None
- Holding Force: 150kg
- Endurance: Cycle tested to 1,000,000 operations
- Operational Temperature Range: -20°C to +60°C
- Body Material: Cast Aluminium
- Lock alignment adjustable up to 5mm in x and y directions
- Electrical Certifications: CE and C-tick
- Dimensions (H x L x W): 40mm x 100mm x 60mm
- Weight: 1.2 kg
Key Features
- Compact cast aluminium lock designed for cabinets
- Surface mountable vertically or horizontally for installation flexibility
- Can be controlled by existing access control systems, remote keypad, or keyswitch
- Cost efficient, robust, and easy to install
- Fail secure mode with self-latching strike
- Adjustable lock alignment up to 5mm in both x and y directions
- Solenoid rated for continuous use
Professional Installation Requirements
- Professional installation by a qualified technician or locksmith is recommended to ensure proper alignment and integration with access control systems.
Applications
- Cabinet security for swing or sliding doors
- Access control integration for cabinets
- Suitable for one or multiple cabinet locking applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable cast aluminium construction reduces need for frequent replacements
- Low power consumption at 187mA @ 12VDC
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Lockwood EL110 Cabinet Lock 12VDC Fail Secure Non Monitored is available now for immediate purchase. Ideal for securing cabinets in commercial and industrial environments.
