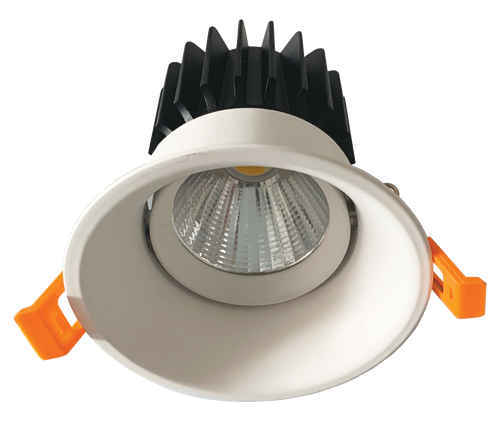

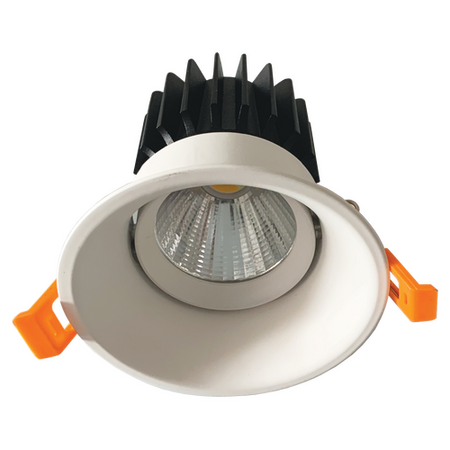

12W Gimbal Spot COB Downlight | 60˚ Beam Angle | Tri-Colour Switchable | White by Lawell Lightning
12W gimbal spot COB downlight with 60˚ beam angle and tri-colour switchable feature—ideal for residential and commercial spaces. Built for energy efficiency, with dimmable LED technology and IC-4 rating for safe installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 12W Gimbal Spot COB Downlight - White
Brand: Lawell Lightning
SKU: TLCOTC12WD-GIM
Alternatively Known As: ['12W LED Downlight', 'Tri-Colour Gimble Downlight', 'COB Downlight', 'Adjustable LED Downlight', 'IC-4 Rated Downlight']
Technical Specifications
- Input Voltage: 240V
- Wattage: 12W
- Lumen Output: 900lm
- Beam Angle: 60˚
- Cutout: 90mm
- Dimming: Yes - trailing edge
- Colour Temperature: 3000K/4000K/6000K (switchable)
- Fitting Colour: Black/White
- IC-4 rated for safe installation under insulation
- Die-cast aluminium body
- Constant current driver
- Gimble adjustable design

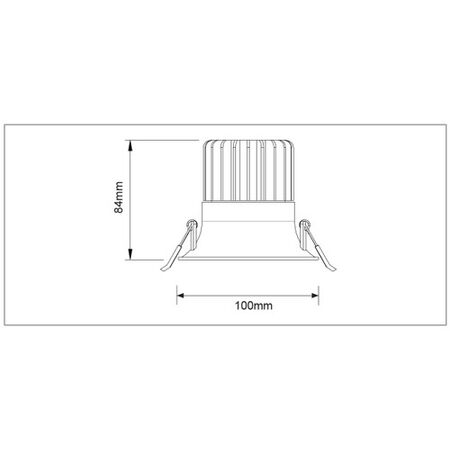

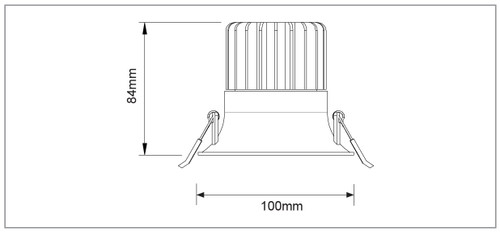

- Dimensions (H x L x W): 84mm x 100mm x 100mm
- Weight: 0.39 kg
Key Features
- Die-cast aluminium body for durability
- 60˚ beam angle for wide light distribution
- Dimmable LED light module (trailing edge compatible)
- Long life, energy-saving LED technology
- Tri-colour switchable (3000K/4000K/6000K)
- Available in white and black finishes
- Constant current driver for stable performance
- Gimble design for directional lighting
- IC-4 rating – safe for installation under ceiling insulation
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with Australian standards and optimal safety.
Applications
- Residential: Living rooms, bedrooms, kitchens, hallways
- Commercial: Offices, retail stores, hospitality venues
- General: Any indoor space requiring energy-efficient, adjustable downlighting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption and carbon footprint.
- Long lifespan (50,000 hours) minimizes waste and replacement frequency.
Warranty Information
Comprehensive 3-year replacement warranty.
Available Now
Available for immediate purchase. Ideal for residential and commercial lighting applications requiring energy-efficient, adjustable downlights.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
