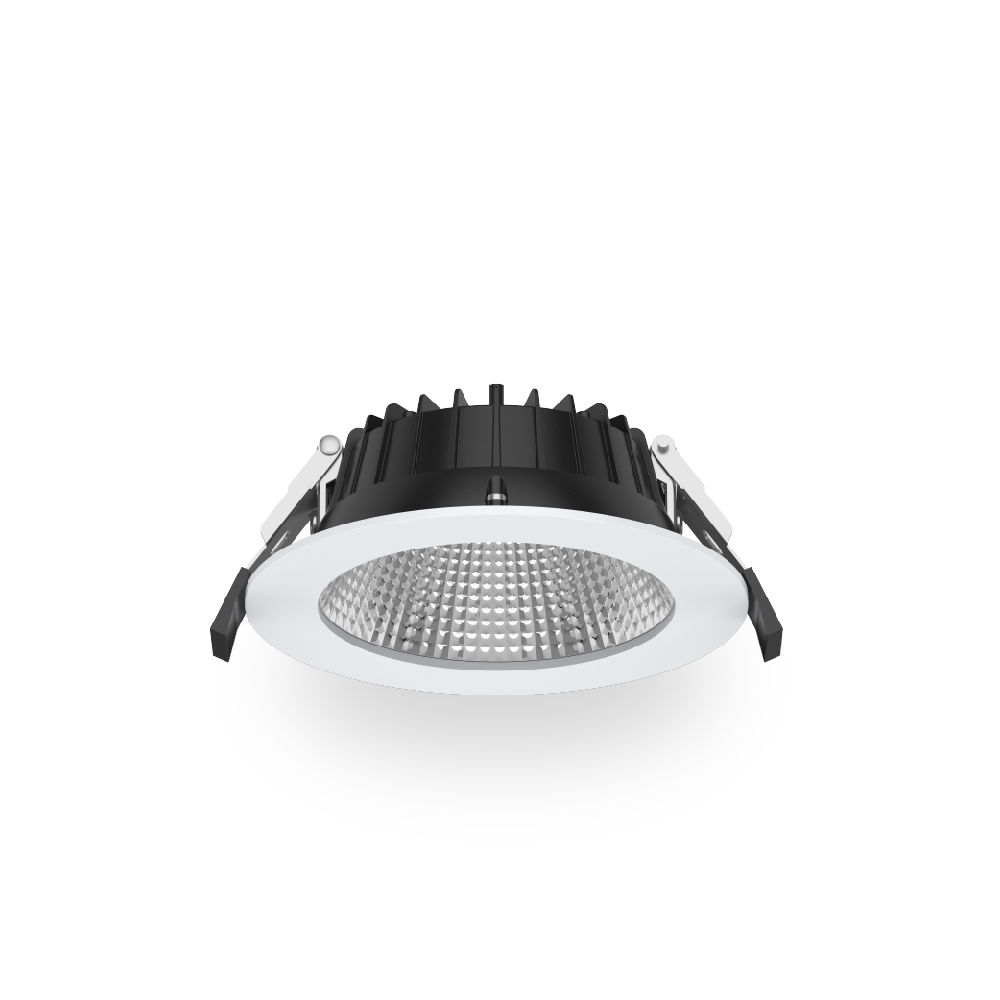

12W LED Downlight | Dimmable Driver | Tri-CCT | IP44 Rated | by atom
The 12W LED downlight with a dimmable driver offers versatile Tri-CCT options, including warm white, cool white, and daylight. Perfect for both residential and commercial spaces, this recessed light features an IP44 rating for moisture resistance and a high efficiency of up to 137 lm/W. With a long LED lifetime of over 54,000 hours, it ensures reliable performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tri-CCT LED downlight, dimmable LED ceiling light, recessed LED light, 12 watt LED downlight
Technical Specifications
- Power Wattage: 12 W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Beam Angle: 60°
- UGR: <19
- LED Voltage: 36 V
- LED Current: 300 mA
- Driver Type: Dimmable (Phase cut), constant current
- Driver Included: Yes
- Flex & Plug Length: 1200 mm
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Working Temperature Range: -10 to 40 °C
- Macadam Steps: 5-step MacAdam ellipse
- LED Lifetime: >54,000 hours (TM-21 report)
- Installation Type: Recessed
- Switch Type: Inline
- Dimensions (H x L x W): 70mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- Tri-CCT configuration with warm white (3000K), cool white (4000K), and daylight (5700K) options
- Dimmable driver with phase cut technology
- High system efficiency up to 137 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation coverage
- Fixed adjustability with powder-coated white finish
- Long LED lifetime greater than 54,000 hours
- Beam angle of 60° with low UGR (<19) for comfortable lighting
- 5-step MacAdam ellipse for consistent color quality
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting: living rooms, bedrooms, kitchens
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable color temperature
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifespan minimizes waste and replacement frequency
- Compliant with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The atom 12W LED downlight with dimmable driver and tri-CCT is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
