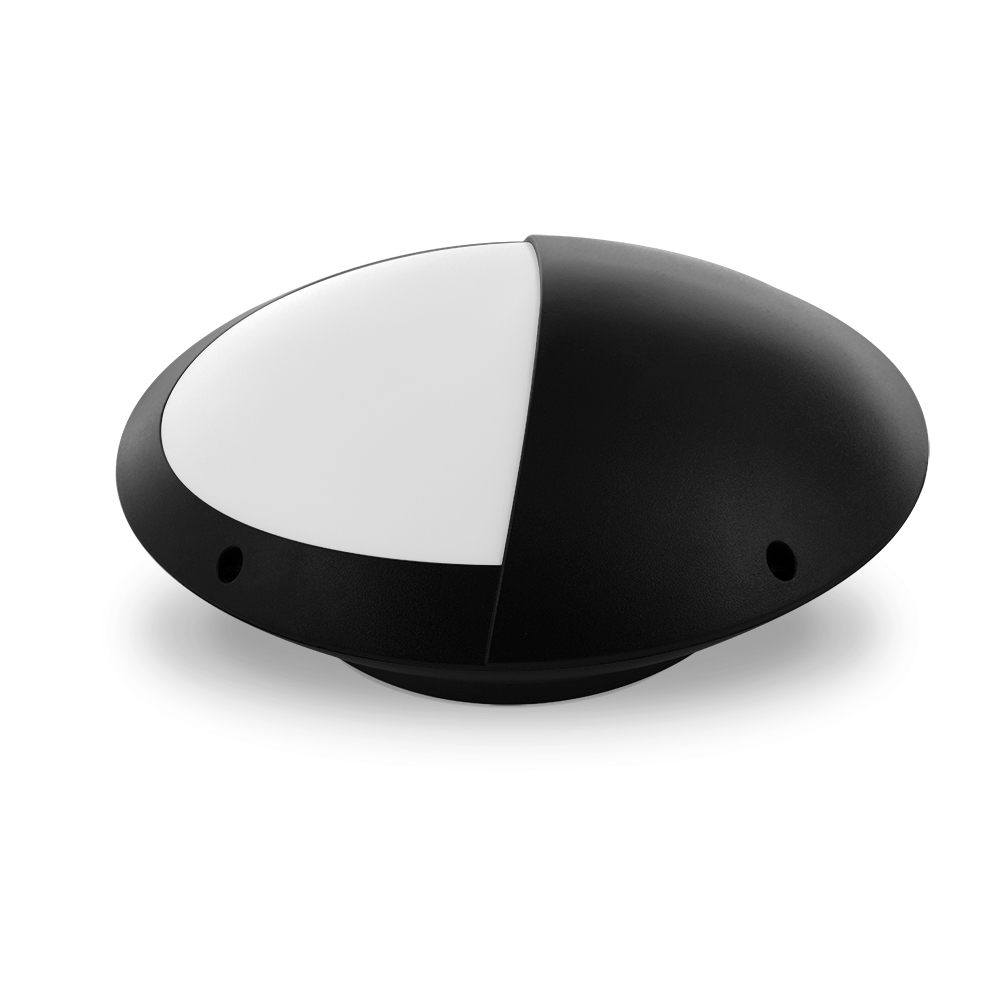

12W LED Polycarbonate Bunker Light | IP66 Rated | TRI-CCT | Black | by atom
The 12W LED Polycarbonate Bunker Light is designed for both indoor and outdoor use, featuring an IP66 rating for dust and water protection. With TRI-CCT color temperature options and a durable polycarbonate body, this light is perfect for commercial and residential applications, ensuring long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12W LED Bunker Light, IP66 LED Wall Light, Polycarbonate LED Bulkhead, TRI-CCT LED Outdoor Light, Vandal Resistant LED Light
Technical Specifications
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.07 A
- Colour Rendering Index (CRI): >80
- Colour Temperatures: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- LED Lifetime: >54,000 hours (L70B10 rating)
- Driver Type: Fixed output, constant current
- Dimmable: No
- Switch Type: Inline
- Installation Type: Wall or ceiling mounted
- Body and Diffuser Material: Polycarbonate
- IP Rating: IP66
- IK Rating: IK10
- Adjustability: Fixed
- Dimensions (H x L x W): 100mm x 300mm x 200mm
- Weight: 1.2 kg
Key Features
- 12W system max wattage with TRI-CCT colour temperature configuration
- High total system efficiency up to 98 lm/W
- IP66 rated for dust and water ingress protection
- IK10 rated for impact resistance
- Polycarbonate body and diffuser for durability
- Fixed output driver with re-wireable terminal block
- Non-dimmable with inline switch
- Long LED lifetime greater than 54,000 hours (L70B10 rating)
- Available with eyelid option for controlled light distribution
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Wall or ceiling installation for indoor and outdoor lighting
- Suitable for commercial, industrial, and residential environments requiring durable, weatherproof lighting
- Ideal for areas needing high ingress protection and vandal resistance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Durable polycarbonate construction extends product lifespan
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom Oval 12W LED Polycarbonate Bunker light with IP66 rating and eyelid option is available for immediate purchase, ideal for robust indoor and outdoor lighting applications.
