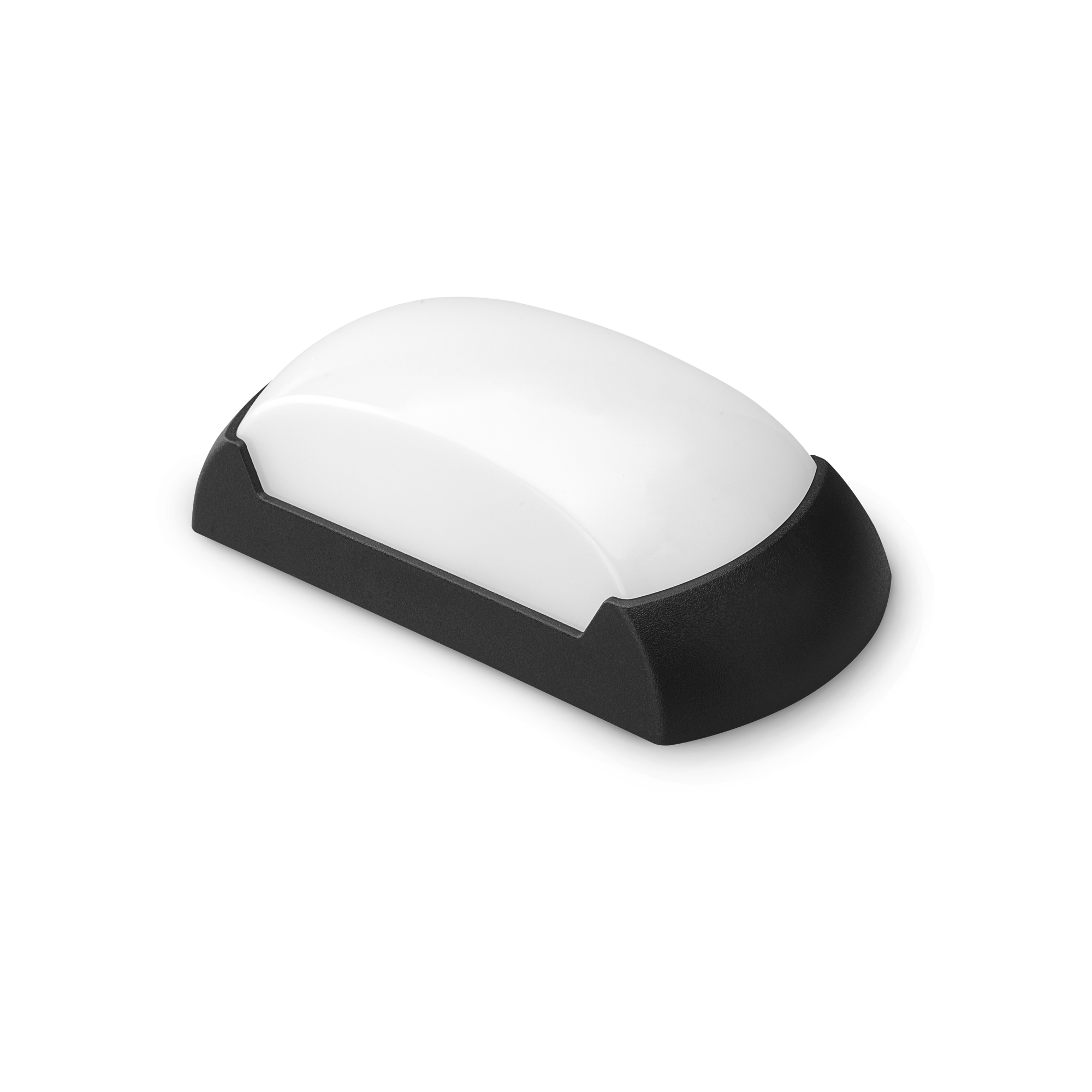

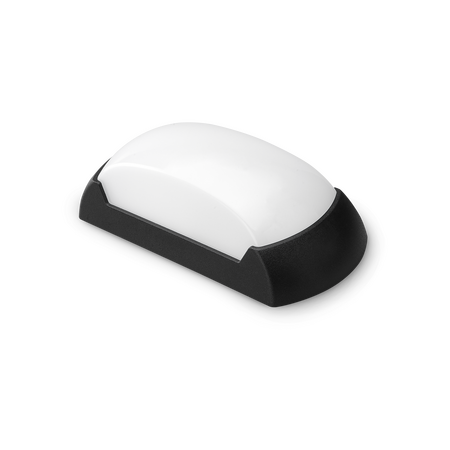

12W LED Rectangle Polycarbonate Bulkhead | IP65 Rated | Cool White 4000K | 980 Lumens | by atom
The 12W LED Rectangle Polycarbonate Bulkhead is designed for versatile surface-mounted lighting, featuring an IP65 rating for dust and water protection. With a cool white 4000K color temperature and 980 lumens output, it's perfect for both indoor and outdoor applications, ensuring durability and energy efficiency for residential and commercial spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Bulkhead Light, Rectangle LED Wall Light, IP65 LED Bulkhead, Surface Mount LED Light, Cool White Bulkhead
Technical Specifications
- Power: 12 W maximum, LED wattage 10.9 W
- Lumens output: 960 lm
- Colour temperature: 4000 K (Cool White)
- Colour Rendering Index (CRI): >80
- Beam angle: 120°
- Input voltage: 230Vac (216-253Vac range)
- Power factor: 0.9
- Driver type: Fixed output, constant current 140 mA
- LED lifetime: 30,000 hours (TM-21 reported)
- Operating temperature: -20 to 40 °C
- Switch type: Inline
- Installation: Surface mount
- Body and diffuser material: Polycarbonate
- IP rating: IP65
- Non-IC rated
- Dimensions (H x L x W): 80mm x 120mm x 300mm
- Weight: 0.8 kg
Key Features
- IP65 rated for dust and water ingress protection
- Polycarbonate body and diffuser for durability
- Fixed output driver with constant current mode
- Cool white 4000K colour temperature with >80 CRI
- 120° beam angle for wide light distribution
- Non-dimmable with inline switch
- Operating temperature range from -20 to 40 °C
- Re-wireable terminal block (3 pin) for easy installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Outdoor and indoor surface mounted lighting
- Commercial and residential bulkhead lighting
- Wall washer lighting option for architectural illumination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS CISPR 15
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime of 30,000 hours reduces waste and replacement frequency
- Polycarbonate materials are durable and recyclable
Warranty Information
Standard 3 years return-to-base warranty. VIP warranty available with 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 12W LED Rectangle Polycarbonate Bulkhead is available for immediate purchase, ideal for both residential and commercial surface mounted lighting applications.
