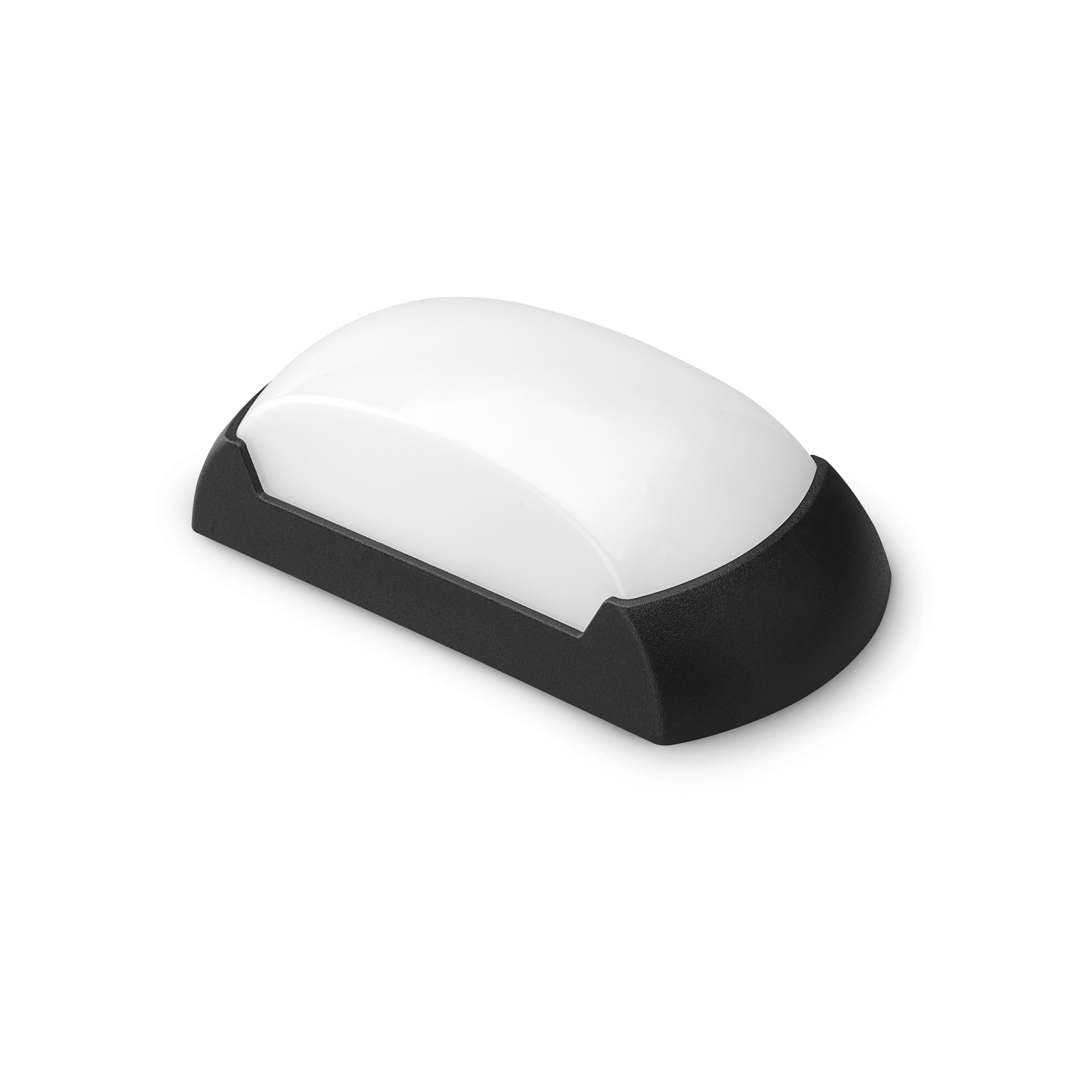

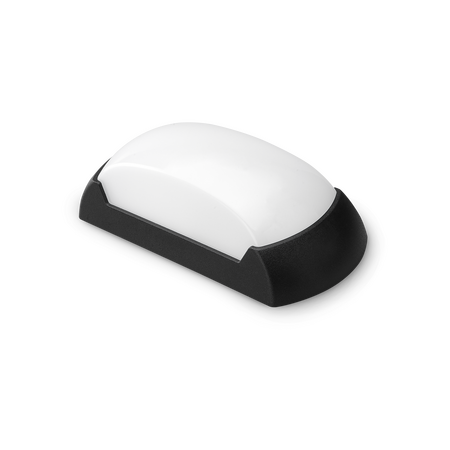

12W LED Rectangle Polycarbonate Bulkhead | IP65 Rated | Cool White Light | by atom
The 12W LED Rectangle Polycarbonate Bulkhead is designed for both outdoor and indoor applications, featuring an IP65 rating for dust and water protection. With a cool white light at 4000K and a wide 120° beam angle, it provides efficient illumination for commercial and residential spaces. Built with durable polycarbonate materials, this surface mount light ensures long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Bulkhead Light, Rectangle LED Wall Light, IP65 Outdoor Bulkhead, Cool White LED Wall Washer
Technical Specifications
- Total System Efficiency: 80 lm/W
- LED Wattage: 10.9 W
- Luminaire Lumens: 960 lm
- Colour Temperature: 4000 K (Cool White)
- Colour Rendering Index (CRI): >80
- Beam Angle: 120°
- Input Voltage: 230Vac (216-253Vac range)
- Power Factor: 0.9
- Driver Type: Fixed output, constant current 140 mA
- Dimmable: No
- Wiring: Re-wireable terminal block (3 pin)
- Operating Temperature: -20 to 40 °C
- IP Rating: IP65
- Material: Polycarbonate body and diffuser
- Installation: Surface mount
- Switch Type: Inline
- Dimensions (H x L x W): 80mm x 120mm x 250mm
- Weight: 1.2 kg
Key Features
- IP65 rated for dust and water ingress protection
- Polycarbonate body and diffuser for durability
- Fixed output driver with constant current mode
- Cool white 4000K colour temperature with >80 CRI
- 120° beam angle for wide light distribution
- Non-dimmable with inline switch
- Operating temperature range from -20 to 40 °C
- Power factor of 0.9 ensuring efficient power use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor and indoor wall lighting
- Commercial and residential building exteriors
- Pathway and security lighting
- Surface mount installations requiring IP65 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires Safety Standards
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime of 30,000 hours reduces waste and replacement frequency
- Polycarbonate materials are durable and recyclable
Warranty Information
Standard 3 years return-to-base warranty. VIP warranty available with 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 12W LED Rectangle Polycarbonate Bulkhead in Black with Cool White light is available for immediate purchase, ideal for outdoor and indoor surface mount lighting applications requiring durable and efficient illumination.
