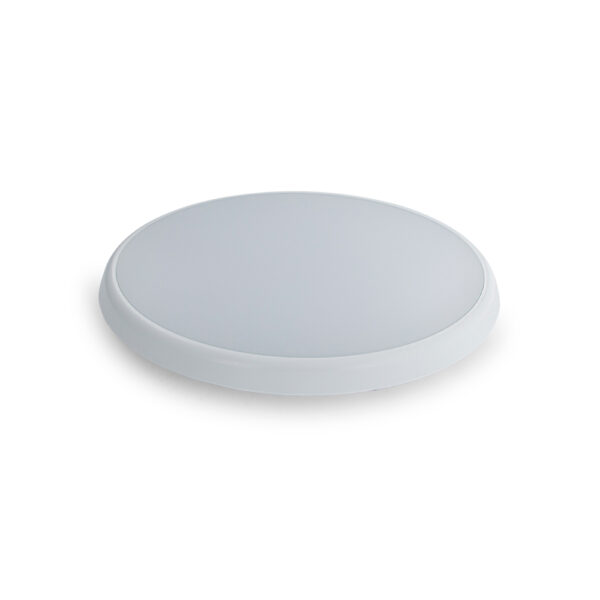

12W LED Round Low Profile Dimmable Oyster Light | IP54 Rated | TRI-CCT Color Temperature | by atom
The 12W LED Round Low Profile Dimmable Oyster Light is perfect for both residential and commercial spaces, offering an IP54 rating for dust and water resistance. With TRI-CCT color temperature options (3000K, 4000K, 5700K) and a high efficiency of up to 111 lm/W, this versatile light ensures optimal illumination while enhancing energy savings. Its durable polycarbonate construction and dimmable feature make it an ideal choice for various lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 12w LED Oyster Light, Round LED Ceiling Light, Low Profile LED Downlight, Dimmable LED Panel Light, TRI-CCT LED Light
Technical Specifications
- System Max Wattage: 12W (model AT3014/12/WH/TRI)
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.07 A
- Colour Rendering Index (CRI): >80
- Colour Temperatures: Warm White (3000K), Cool White (4000K), Daylight (5700K)
- Lumens Output: 1180 lm (3000K), 1290 lm (4000K), 1250 lm (5700K)
- LED Lifetime: >54,000 hours (L70B10 rating)
- IP Rating: IP54
- IK Rating: IK08
- Driver Type: Dimmable (Phase cut), Integrated
- Wiring Type: Re-wireable terminal block (3 pin)
- Operating Temperature Range: -20 to 45 °C
- Installation Type: Wall or Ceiling
- Dimensions (H x L x W): 40mm x 250mm x 250mm
- Weight: 0.8 kg
Key Features
- Dimmable with phase cut driver
- TRI-CCT colour temperature configuration (3000K, 4000K, 5700K)
- High system efficiency up to 111 lm/W
- IP54 rated for dust and water resistance
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- Long LED lifetime over 54,000 hours (L70B10 rating)
- Inline switch for easy operation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Wall or ceiling installation in residential and commercial spaces
- Suitable for indoor and outdoor environments requiring IP54 protection
- Ideal for ambient and task lighting with adjustable colour temperature
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Particular Requirements for Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
- Dimmable feature allows for reduced energy use when full brightness is not needed
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The atom 12w LED 250mm Round Low Profile Dimmable IP54 Polycarbonate Oyster Light is available for immediate purchase, ideal for residential and commercial lighting applications requiring adjustable colour temperature and durable design.
