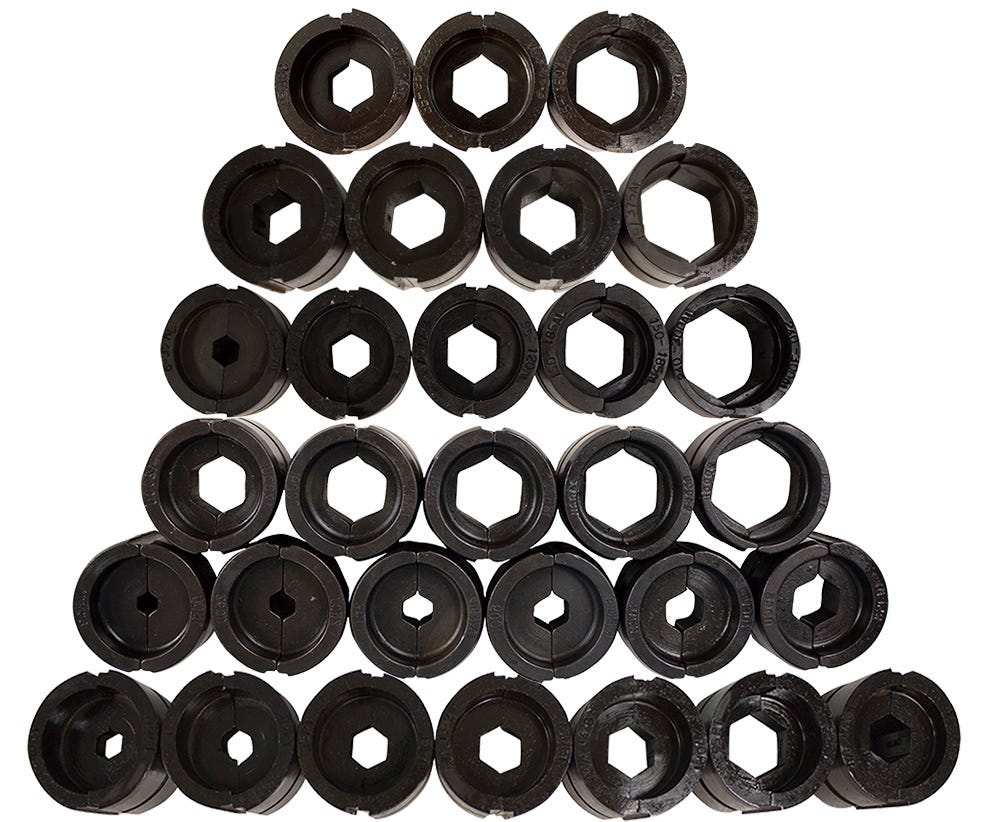

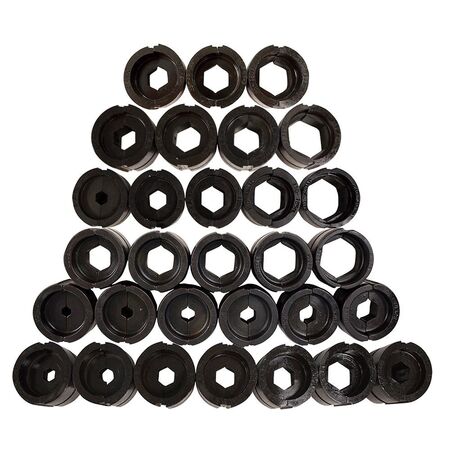

13 Ton Die Set for Cu & Al | 30 Dies | Hexagonal Crimp Profile | Heat-Treated Carbon Steel | @KIT of 1 | by Cabac
The 13 Ton Die Set for Cu & Al is perfect for crimping copper and aluminium lugs, featuring a comprehensive set of 30 dies ranging from 6 to 300 mm². Made from durable heat-treated carbon steel, this kit is designed for professional use, ensuring secure connections for electrical and utility applications. Ideal for contractors and maintenance professionals, it meets AS/NZS 60950 standards for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 13 Ton Die Set for Cu & Al | 30 Dies | Hexagonal Crimp Profile | Heat-Treated Carbon Steel | @KIT of 1 | by Cabac
Brand: Cabac
SKU: DIESET2
Alternatively Known As: Hydraulic Crimping Die Set, Copper and Aluminium Crimping Dies, 13T Die Set, Electrical Crimping Dies
Technical Specifications
- Crimping force: 12/13 tonnes
- Material: Heat-treated carbon steel
- Copper dies size range: 16 to 300 mm²
- Aluminium dies size range: 6 to 300 mm²
- Hexagonal crimp profile
- Dimensions (H x L x W): 150mm x 500mm x 400mm
- Weight: 10 kg
Key Features
- 12/13 tonne dies designed for Australian and New Zealand dimensioned lugs, links, and overhead line sleeves
- Hexagonal crimp die kit suitable for copper (Cu) and aluminium (Al)
- Made from durable heat-treated carbon steel
- Includes 13 aluminium dies ranging from 6 to 300 mm² and 17 copper lug dies ranging from 16 to 300 mm²
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure correct crimping and safety.
Applications
- Crimping copper and aluminium lugs, links, and overhead line sleeves
- Electrical and utility line maintenance and installation
- Hydraulic tool applications requiring precise crimping
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Enables secure electrical connections that improve energy efficiency and safety
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac 13 Ton Die Set for Copper & Aluminium is available for immediate purchase, ideal for electrical contractors and utility maintenance professionals.
