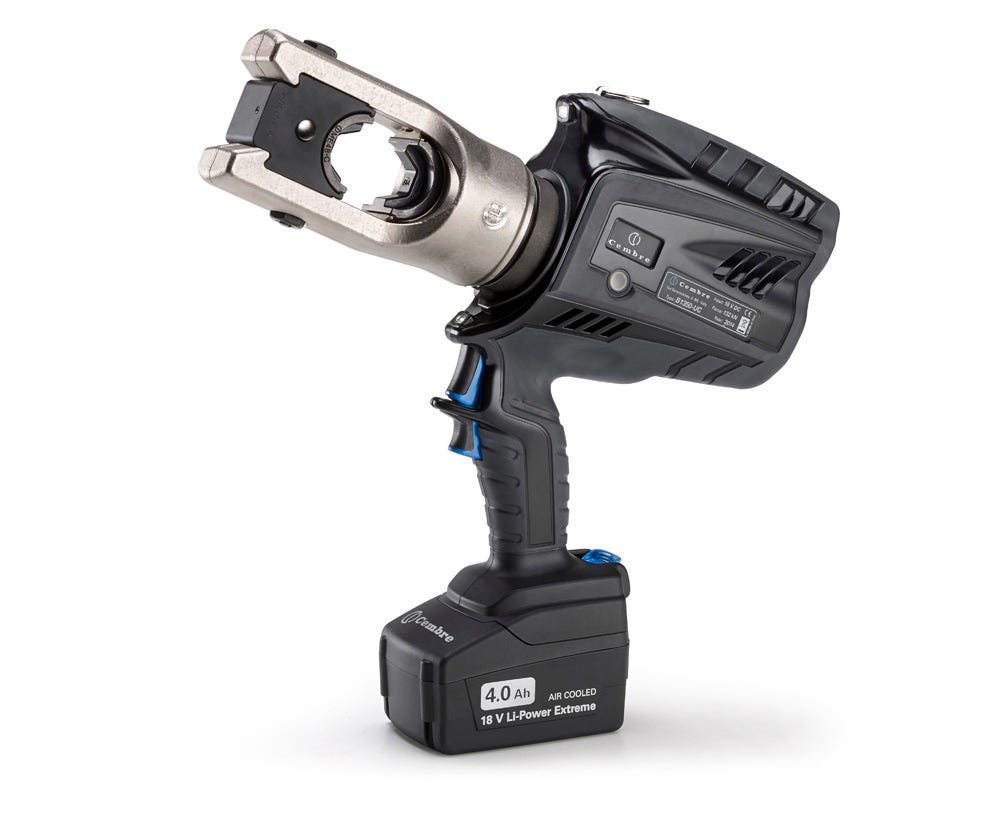

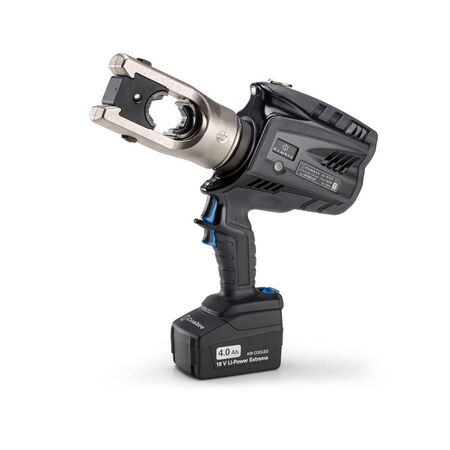

13T Battery Crimper Li-Ion U Head | 130 kN Crimping Force | 180-Degree Rotation | LED Lighting | @EA of 1 | by Cabac
The 13T Battery Crimper Li-Ion U Head is a powerful cordless hydraulic crimping tool designed for efficient operation with a crimping force of 130 kN. Ideal for electrical and utility work, it features a rotating head for ease of use, maximum pressure sensor for safety, and LED lighting for enhanced visibility. Perfect for industrial applications, this tool ensures precision crimping of aluminium and copper conductors up to 400mm².
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Crimping force: 130 kN (13 tonnes)
- Battery: 18V Li-Ion 4 Ah
- Compatible with semi-circular slotted dies for aluminium and copper conductors up to 400mm²
- Crimping head rotation: 180 degrees
- Hydraulic system with double speed action for rapid approach and controlled crimping
- Maximum pressure sensor and security valve for precision and safety
- Data logging capacity: up to 200,000 crimping cycles
- LED lighting for work area illumination
- Low noise and vibration design
- Dimensions (H x L x W): 350mm x 400mm x 120mm
- Weight: 5.5 kg
Key Features
- 18V battery powered hydraulic 13 tonne crimping tool for efficient operation
- Rotating crimping head with 180-degree rotation for ease of use
- Maximum pressure sensor and security valve for precision and operator safety
- Low noise and minimal vibration for operator comfort
- LED lighting for enhanced visibility during operation
- Data logging of up to 200,000 crimping cycles with USB interface for PC transfer
Professional Installation Requirements
- Professional training recommended for safe and effective operation; no fixed installation required as it is a portable tool.
Applications
- Electrical and utility work for crimping aluminium and copper conductors
- Industrial and construction sites requiring high precision crimping
- Maintenance and repair of electrical connectors up to 400mm²
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Battery powered operation reduces reliance on fossil fuels and lowers emissions
- Efficient hydraulic system minimizes energy consumption
- Long-lasting Li-Ion battery with electronic cell control extends battery life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty terms.
Available Now
The Cabac 13T Battery Crimper Li-Ion U Head is available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable and precise crimping.
