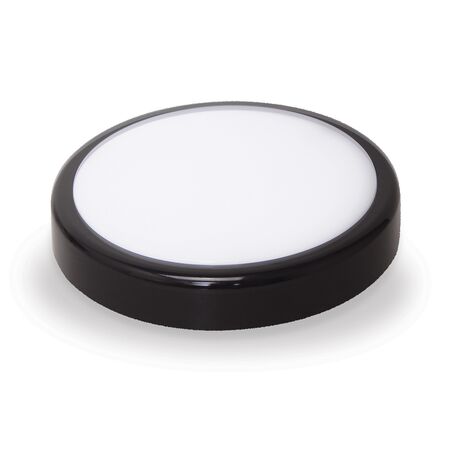

14W Polycarbonate LED Bunker Light | IP65 Rated | Tri-Colour CCT | by atom
The 14W Polycarbonate LED Bunker Light is designed for both indoor and outdoor surface mounting, featuring an IP65 rating for dust and water protection. With a tri-colour CCT configuration (Warm White, Cool White, Daylight) and high efficiency of up to 112 lm/W, this light is perfect for commercial and industrial applications, ensuring reliable illumination in warehouses, car parks, and general areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Bunker Light, LED Surface Mount Light, IP65 LED Bunker, Tri-Colour LED Bunker Light
Technical Specifications
- Power: 14W maximum
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Beam Angle: 120°
- Colour Temperatures: 3000K, 4000K, 5000K (Tri-CCT)
- Lumens Output: Up to 1570 lm depending on model
- Driver Type: Fixed output, constant current 350 mA
- Dimmable: No
- Wiring: Re-wireable terminal block (3 or 6 pin depending on model)
- IP Rating: IP65
- IK Rating: IK10
- Installation: Surface mount
- Body and Diffuser Material: Polycarbonate
- Switch Type: Inline
- Dimensions (H x L x W): 80mm x 150mm x 250mm
- Weight: 0.8 kg
Key Features
- IP65 rated for dust and water protection
- IK10 impact resistance rating
- Tri-colour CCT configuration: Warm White (3000K), Cool White (4000K), Daylight (5000K)
- High system efficiency up to 112 lm/W
- Fixed output driver with constant current mode
- Non-dimmable
- Polycarbonate body and diffuser for durability
- Inline switch type
- Re-wireable terminal block wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Outdoor and indoor surface mounting
- Commercial and industrial lighting
- Warehouses, car parks, and general area lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS CISPR 15
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan reduces waste and replacement frequency
- Polycarbonate materials are durable and recyclable
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users under specific terms.
Available Now
The Atom 14W Polycarbonate LED Bunker IP65 - White - Tri Colour is available for immediate purchase, ideal for commercial and industrial surface lighting applications.
