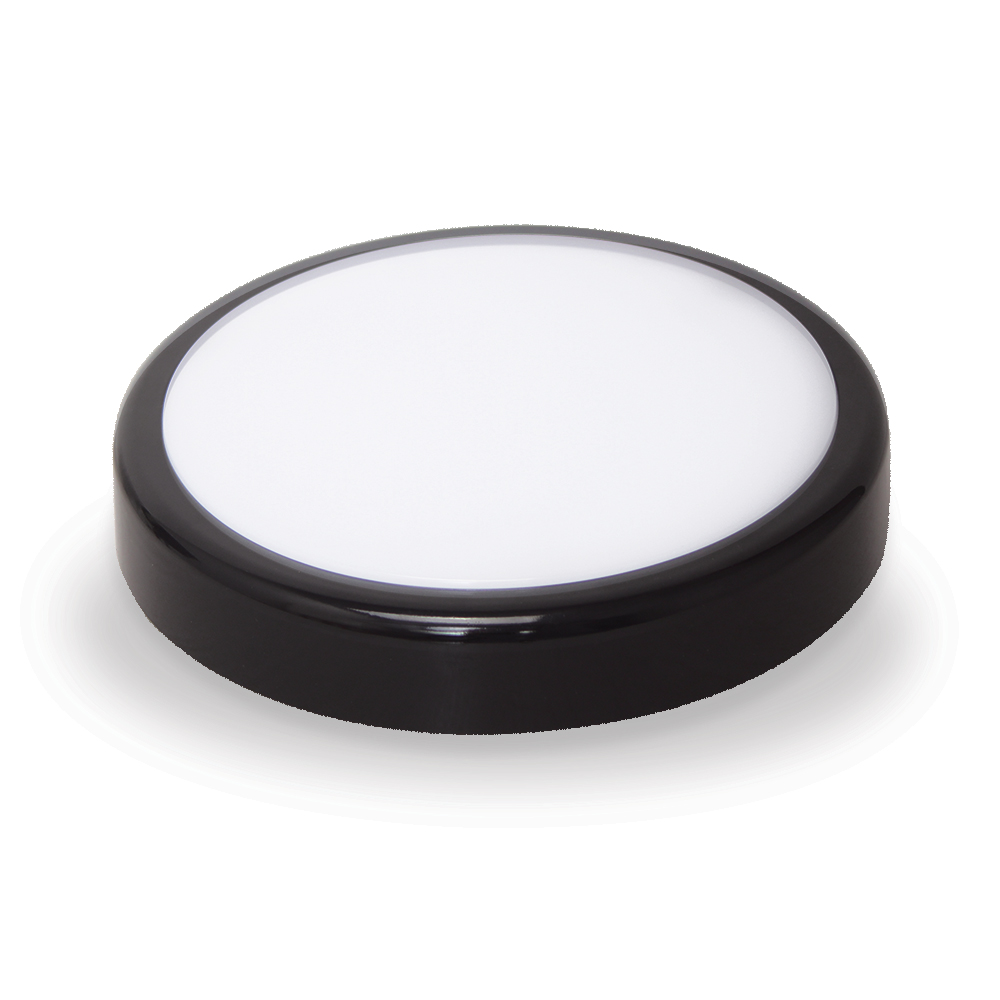

14W Polycarbonate LED Bunker IP65 | Tri-Colour | Corridor Function | Black | by atom
The 14W Polycarbonate LED Bunker IP65 is designed for versatile surface mount lighting, featuring a tri-colour configuration (Warm White, Cool White, Daylight) and a durable polycarbonate body. Ideal for corridors and general indoor/outdoor areas, this light offers high impact resistance (IK10) and excellent energy efficiency, making it perfect for commercial and residential applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED bunker light, LED corridor light, IP65 LED surface light, tri-colour LED bunker, polycarbonate LED bunker light
Technical Specifications
- Power: 14W maximum
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Beam Angle: 120°
- Colour Temperatures: 3000K, 4000K, 5000K (Tri-CCT)
- Lumens Output: Up to 1570 lm depending on model
- Driver Type: Fixed output, constant current 350 mA
- Dimmable: No
- Wiring: Re-wireable terminal block (3 or 6 pin depending on model)
- IP Rating: IP65
- IK Rating: IK10
- Installation: Surface mount
- Material: Polycarbonate body and diffuser
- Dimensions (H x L x W): 80mm x 120mm x 300mm
- Weight: 0.8 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Tri-colour CCT configuration: Warm White (3000K), Cool White (4000K), Daylight (5000K)
- High system efficiency up to 112 lm/W
- Fixed output driver with constant current mode
- Non-dimmable with inline switch
- Polycarbonate body and diffuser for durability
- Re-wireable terminal block wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Surface mount lighting for corridors and general indoor/outdoor areas
- Suitable for commercial, industrial, and residential lighting needs
- Ideal for areas requiring durable, weatherproof lighting with tri-colour options
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598 – Luminaires safety standards
Environmental Benefits
- High luminous efficacy reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Polycarbonate materials are durable and recyclable
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The atom 14W Polycarbonate LED Bunker IP65 with corridor function in black is available for immediate purchase, ideal for commercial and residential surface mount lighting applications.
