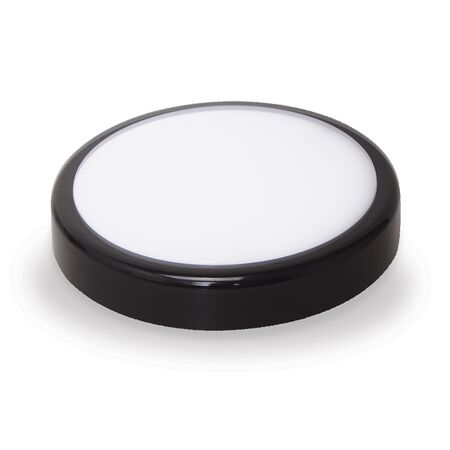

14W Polycarbonate LED Bunker Light | IP65 Rated | Tri-Colour | by atom
The 14W Polycarbonate LED Bunker Light is designed for both indoor and outdoor use, featuring an IP65 rating for dust and water protection. With a tri-colour configuration (Warm White, Cool White, Daylight) and a high efficiency of up to 112 lm/W, this surface mount light is perfect for warehouses, workshops, and covered outdoor areas, ensuring reliable illumination in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED bunker light, LED surface mount light, IP65 LED fixture, tri-colour LED bunker light, polycarbonate LED light
Technical Specifications
- Power: 14W maximum
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Colour Rendering Index (CRI): >80
- Colour Temperatures: 3000K, 4000K, 5000K selectable
- Lumens Output: 1370-1570 lm depending on CCT
- Beam Angle: 120°
- Driver Type: Fixed output, constant current 350 mA
- Dimmable: No
- Wiring: Re-wireable terminal block (3 pin)
- IP Rating: IP65
- IK Rating: IK10
- Installation: Surface mount
- Body and Diffuser Material: Polycarbonate
- Switch Type: Inline
- Dimensions (H x L x W): 70mm x 300mm x 200mm
- Weight: 0.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Tri-colour CCT configuration: Warm White (3000K), Cool White (4000K), Daylight (5000K)
- High system efficiency up to 112 lm/W
- Fixed output driver with constant current mode
- Non-dimmable with re-wireable terminal block wiring
- Polycarbonate body and diffuser for durability
- Inline switch for easy operation
- Beam angle of 120° for wide light distribution
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Surface mount lighting for commercial and industrial environments
- Suitable for outdoor and indoor use requiring IP65 rated fixtures
- Ideal for warehouses, workshops, and covered outdoor areas
Standards & Compliance
- AS/NZS 60598 – Luminaires and Lighting Equipment
Environmental Benefits
- High luminous efficacy reduces energy consumption
- Long lifespan reduces waste and replacement frequency
- Polycarbonate materials are durable and recyclable
Warranty Information
Standard warranty: 3 years return-to-base. VIP warranty: 2 years onsite plus 3 years return-to-base (total 5 years) available to registered users under specific terms.
Available Now
The atom 14W Polycarbonate LED Bunker IP65 - Black - Tri Colour is available for immediate purchase, ideal for commercial and industrial surface mount lighting applications.
